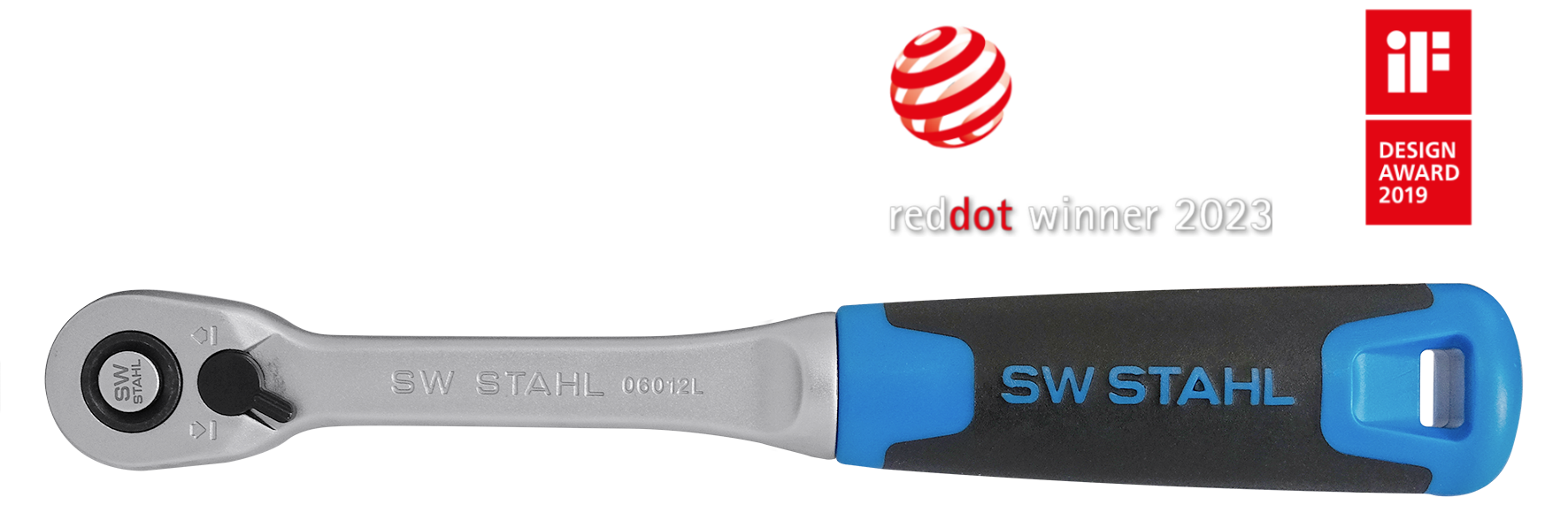

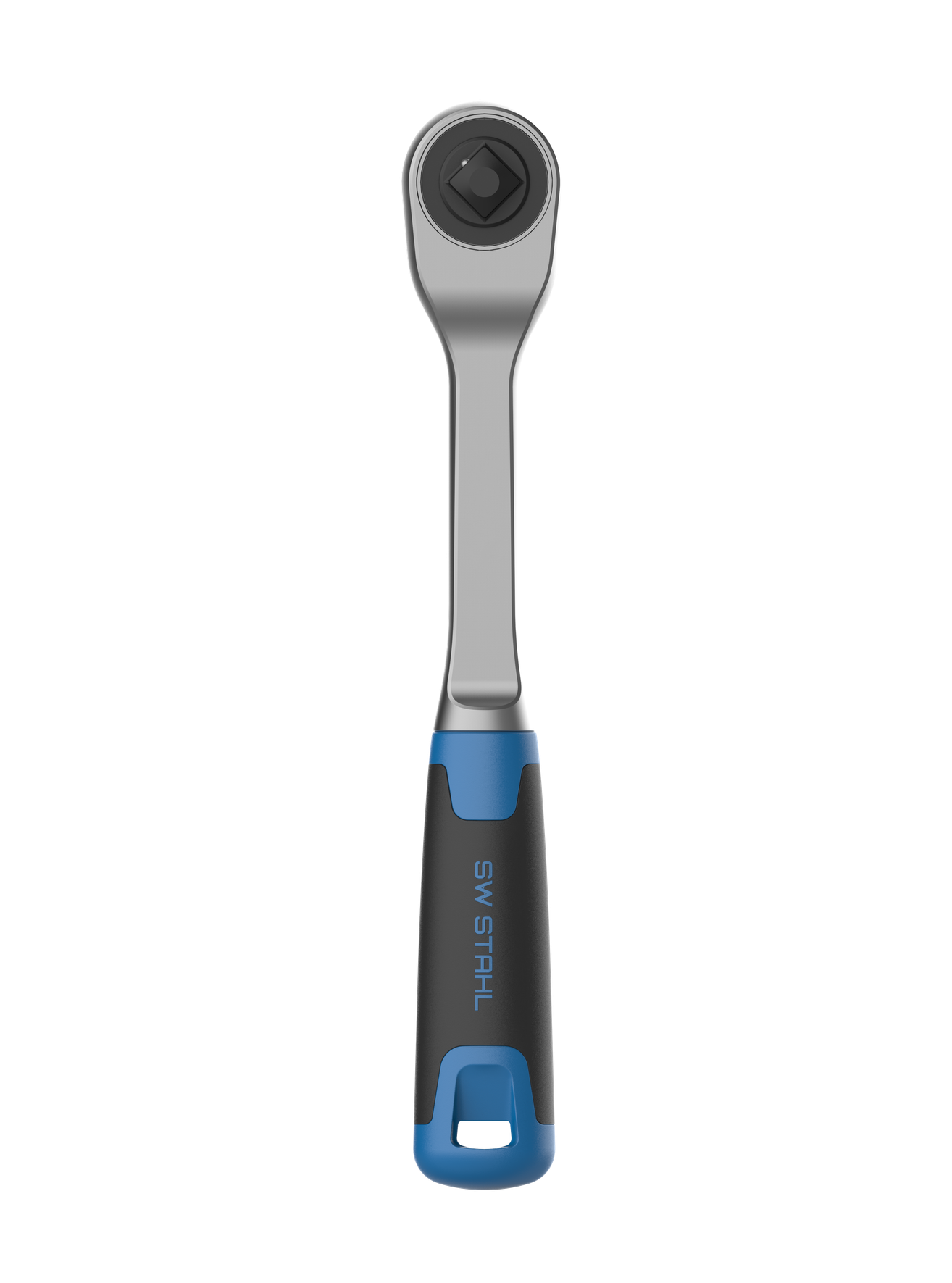

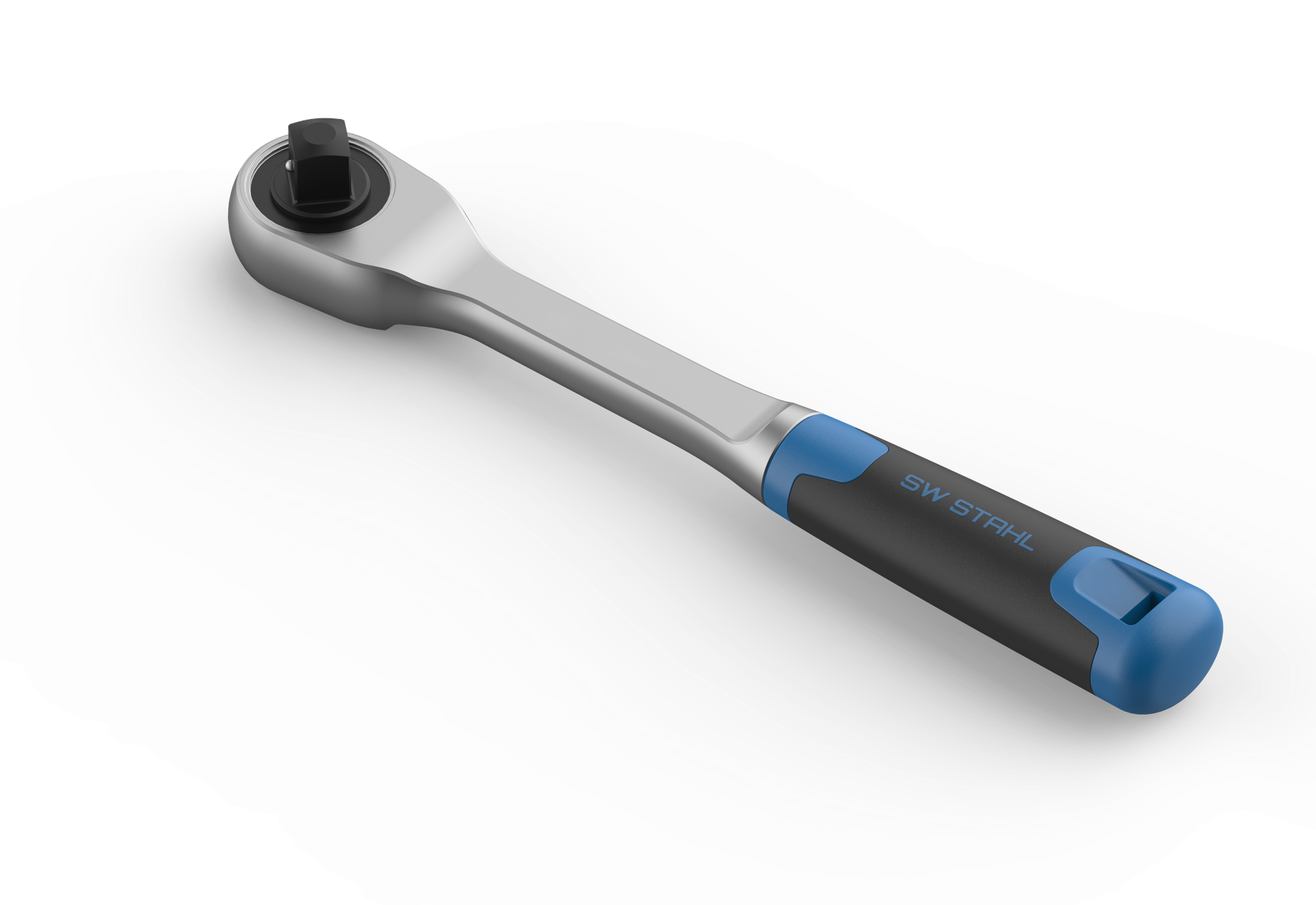

Ratchet wrench, 1/2", slim design

Item no.: 06012L
EAN: 4033592137348

Information about the product


The particularly slim design makes it possible to work without problems even when it is particularly tight.

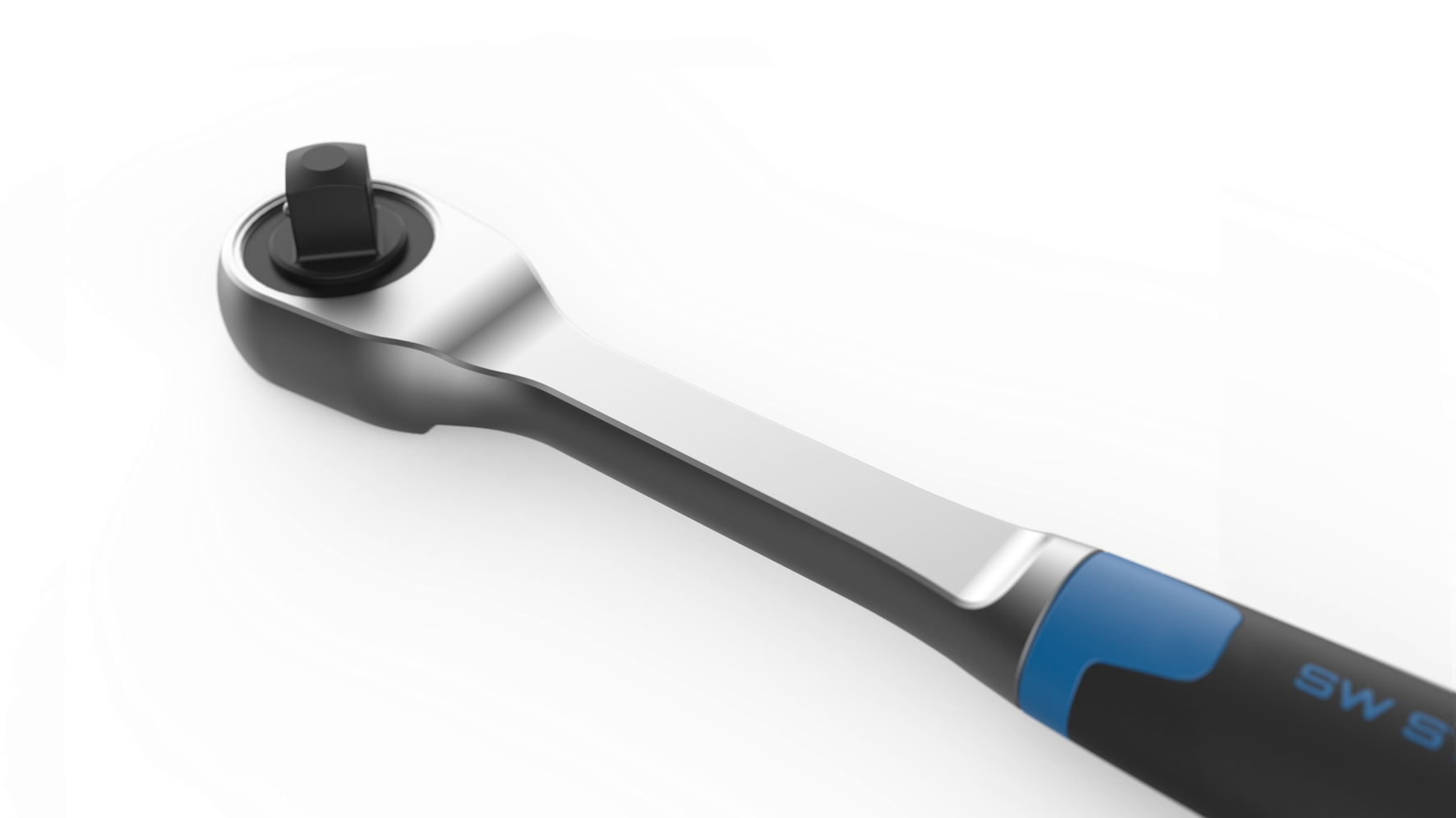

  • Drive: 12.5 mm (1/2“)

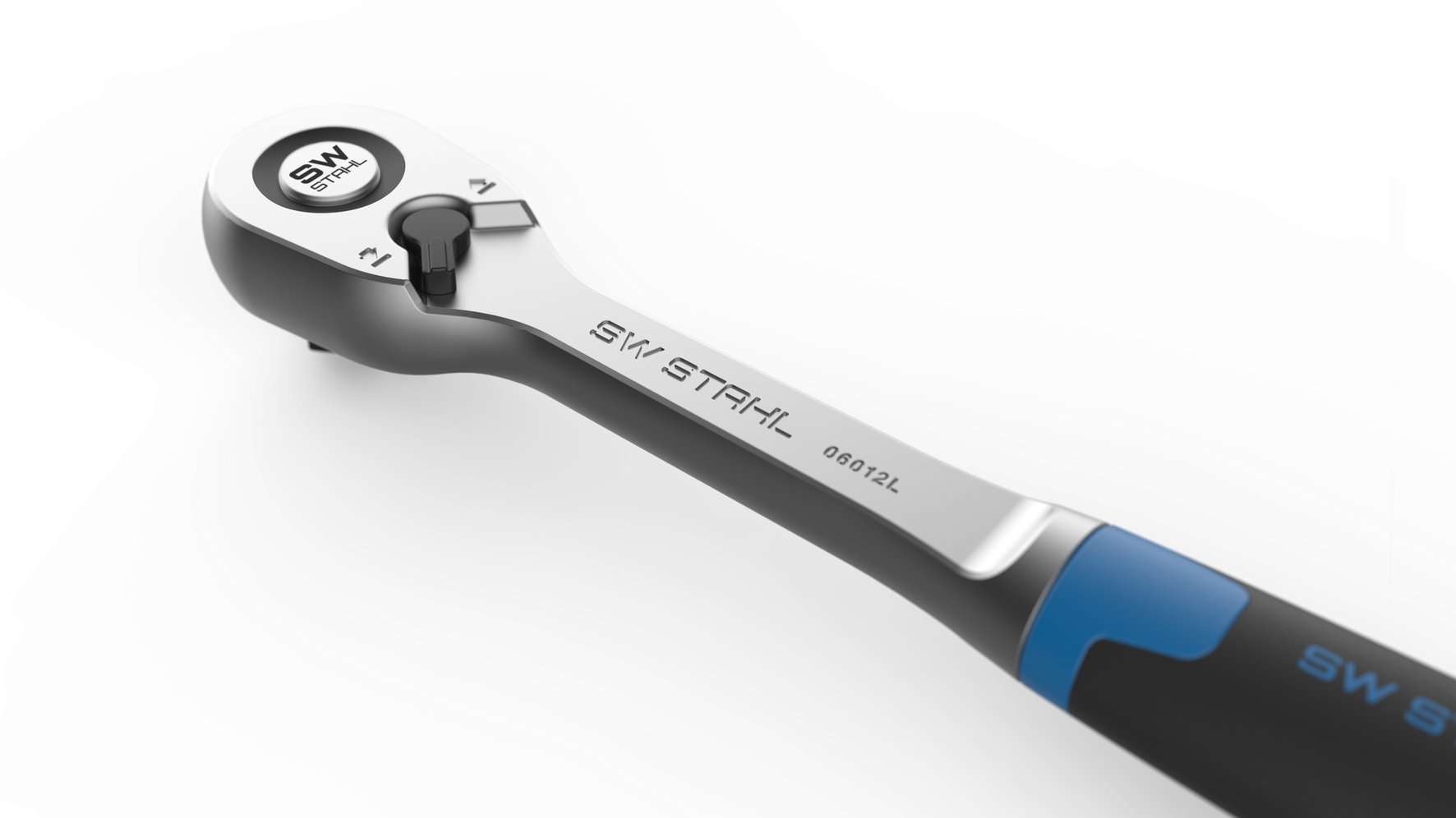

  • Particularly slim ratchet head
  • Fine toothed with 72 teeth
  • Very small swivel angle, 5 °
  • Increase the max. torque by 50%
  • Tested according to DIN 3122: 2017 and ISO 33115: 2018
  • Material: chrome vanadium

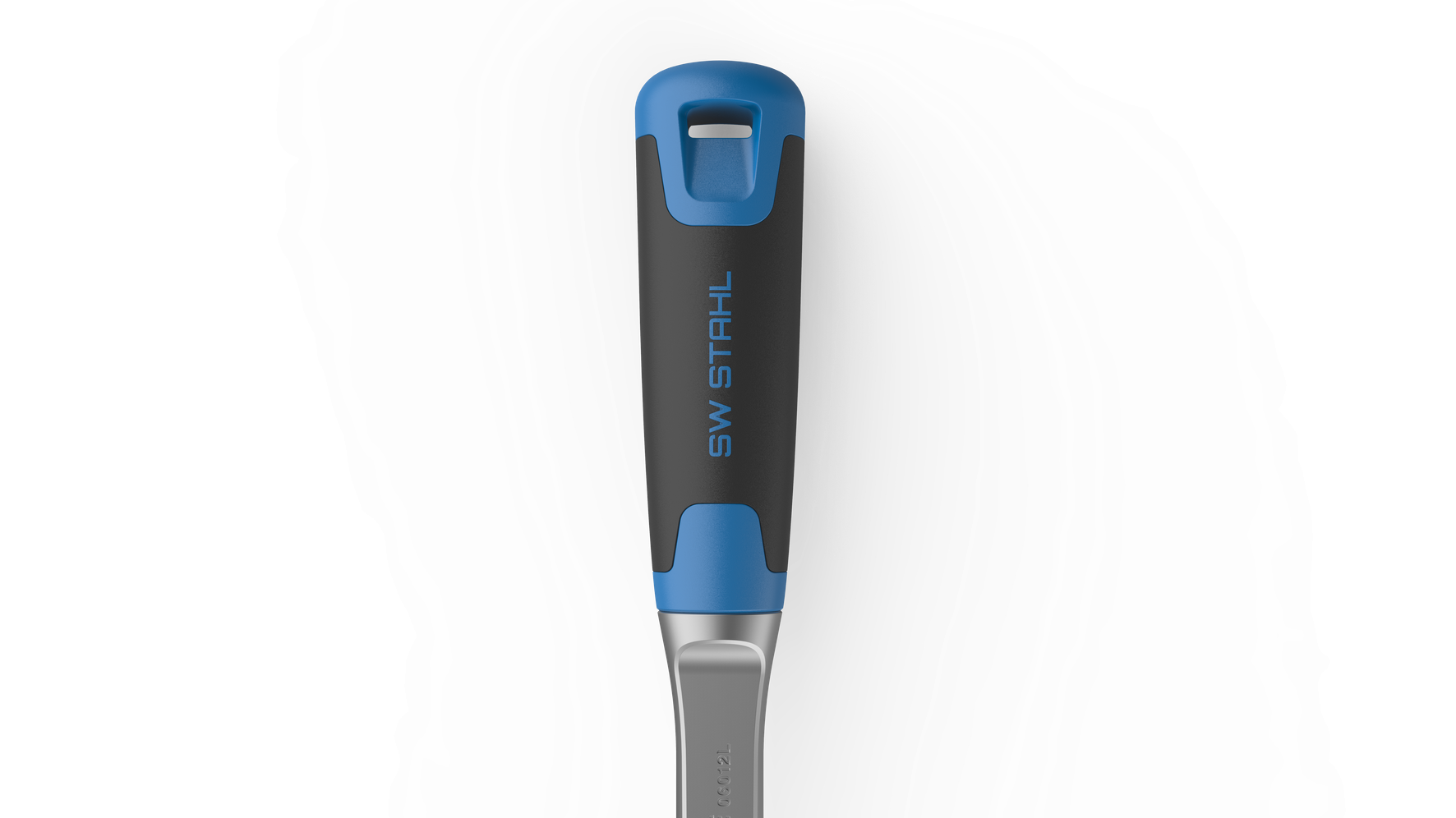

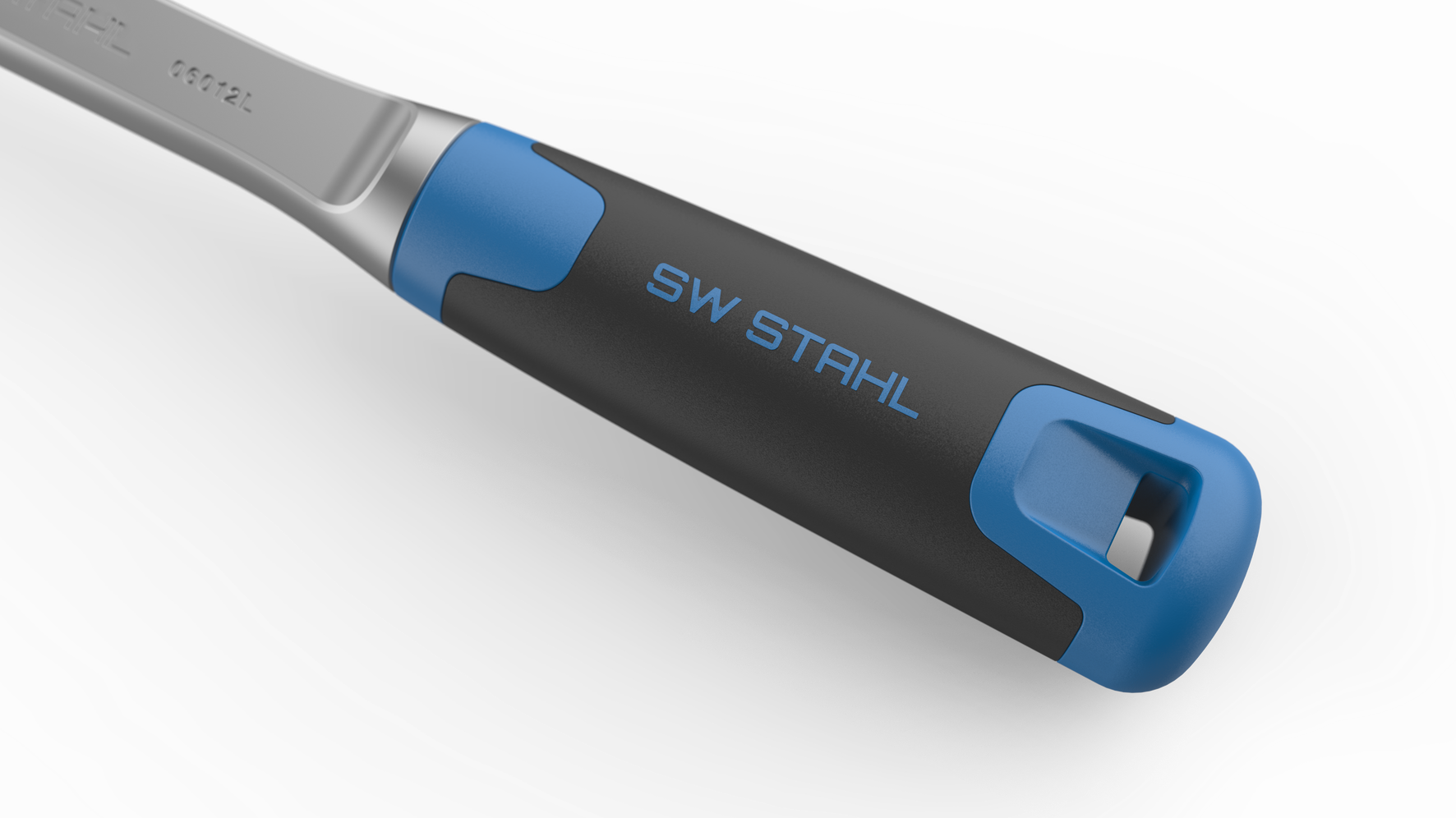

  • Particularly handy 2K handle
  • With insert lock and quick ejection

Technical data

Abtriebs-Vierkant [mm] 12,5 (1/2")
Shape Extra slim
Shape straight
Number of teeth (ratchet mechanism) 72
Supplementary item mit Einsatzarretierung
Screwing Tools characteristics with pushbutton quick-release function on the ratchet head
Head Height [mm] 17
Head Width [mm] 31
Surface Matt, chrom-plated
Material Chrome Vanadium Steel
Drehmoment Max. [Nm] 770
Head Diameter 31
Rotation angle [°] 5
Quality Premium
Length [mm] 249
Weight [kg] 0.47200

More images

Detailed images

Application images

Spare and wear parts

Item no. variant Name
06012L-R - Ratchet mechanism repair set, 1/2"
