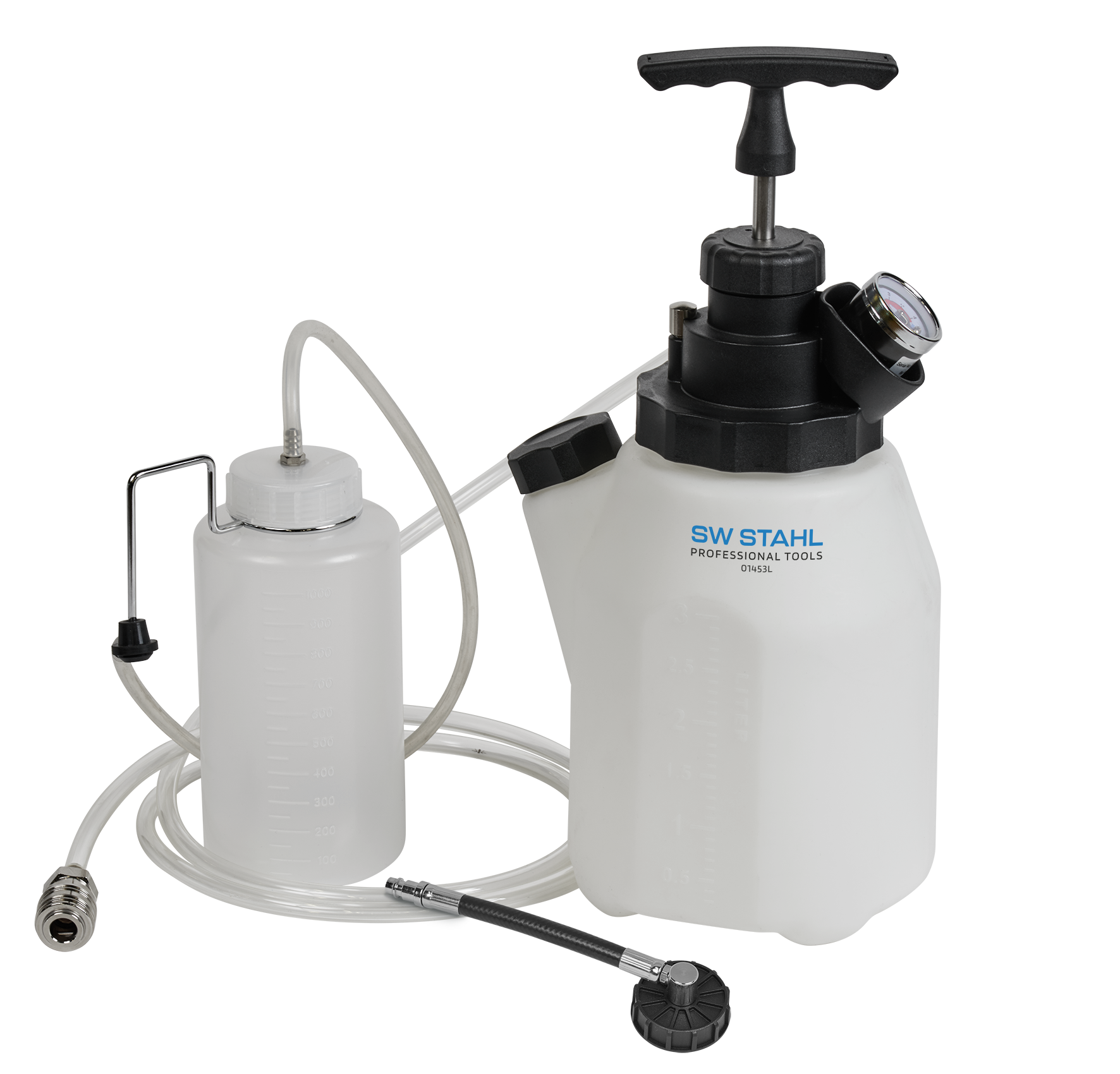

Brake bleeding device 3L, 4-piece


Item no.: 01453L
EAN: 4033592141680


Information about the product

Description

For a safe change of the brake fluid with simultaneous refilling. The device is operated manually. It pumps brake fluid into the expansion tank and thus creates an overpressure in the system, which means that the brake fluid can be drained into the collection tank directly at the brake caliper / wheel brake cylinder. The refill tank ensures that the expansion tank is refilled automatically without overflowing, thus saving a second employee.

  • Capacity of collecting tank: 1 liter
  • Capacity of filling tank: 3 liter
  • 2 m flexible hose with universal adapter for bleeding nipples
  • Standard European adapter with 90° buckling
  • Can be complemented with 01491L and 01494L

Technical data

Connection 1/4 inch
Width 235 mm
Weight 2.50 kg
Height 425 mm
Length 275 mm
Min./max. working pressure 0,5 - 1,0 bar

Vehicle types

Brand Order type
Audi
BMW
Fiat
Ford
Mazda
Mercedes-Benz
Opel
Volvo
VW

In combination

Item no. variant Name
01491L - Universal adapter for brake bleeding, air connection 90°
01494L - Adapter set for surge tank, 6-piece
