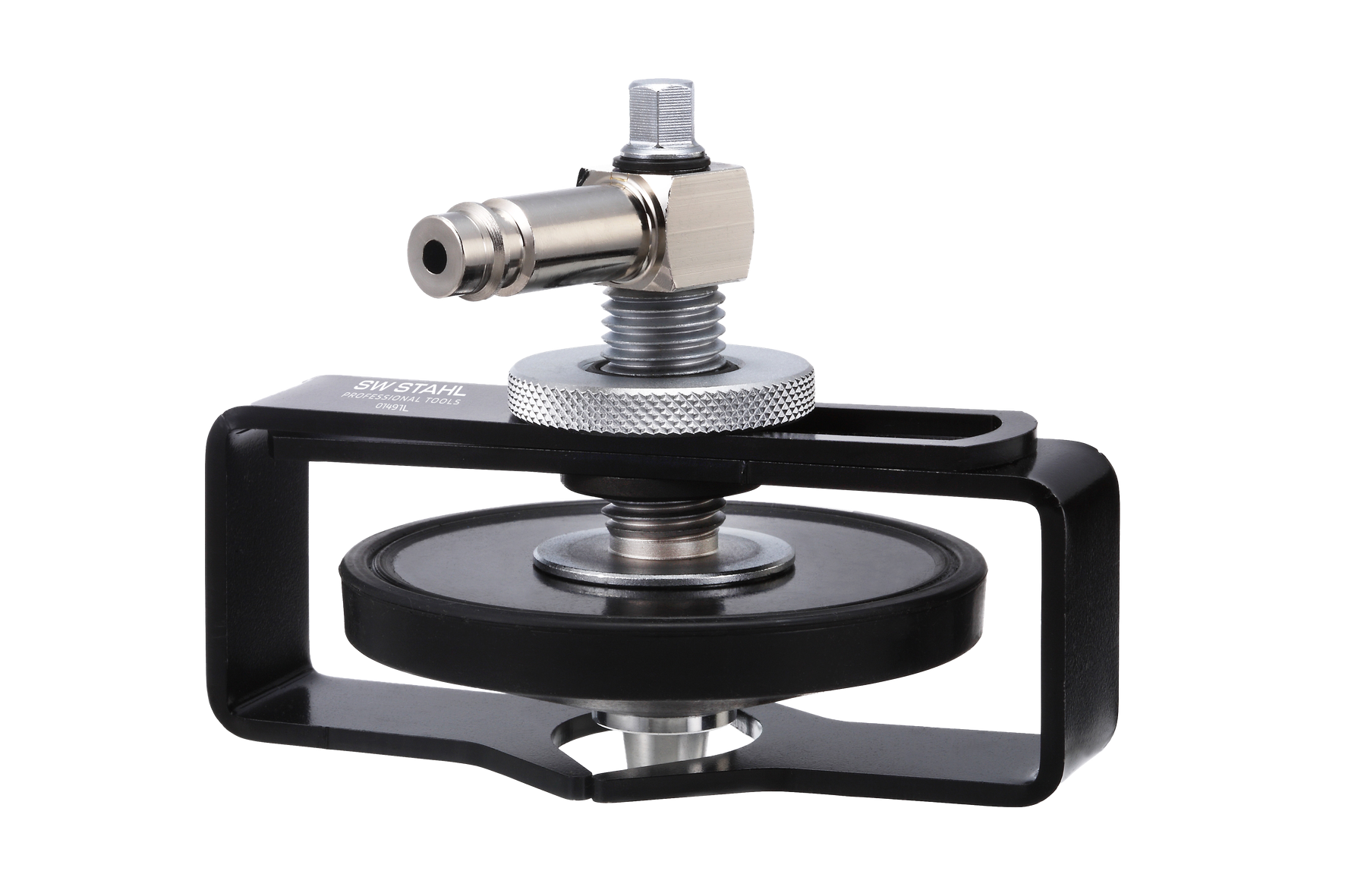

Universal adapter for brake bleeding, connection 90° angled


Item no.: 01491L
EAN: 4033592141673


Information about the product

Description

The infinitely adjustable clamping brackets allow installation on most vehicles.
The rotatable angular connection allows the use even when there is less space at the surge tank.

  • Suitable for brake fluid reservoir with an opening of Ø 28 mm to Ø 70 mm
  • Through the infinitely variable adjustability and optimal sealing, it can be used universally
  • Connection angled 90 °.
  • Suitable in combination with 01453L and 01498L

Technical data

Kopfausführung 90° abgewinkelt
Durchmesser von [mm] 28.0
Durchmesser bis [mm] 70.0
Höhenverstellung von [mm] 86.5
Höhenverstellung bis [mm] 103.0
Arbeitsdruck bis [bar] 3.5

Documents

In combination

Item no. variant Name
01422L - Brake bleeding device, 2-piece
01453L - Brake bleeding device 3L, 4-piece
01498L - Brake bleeding device, 5 l
