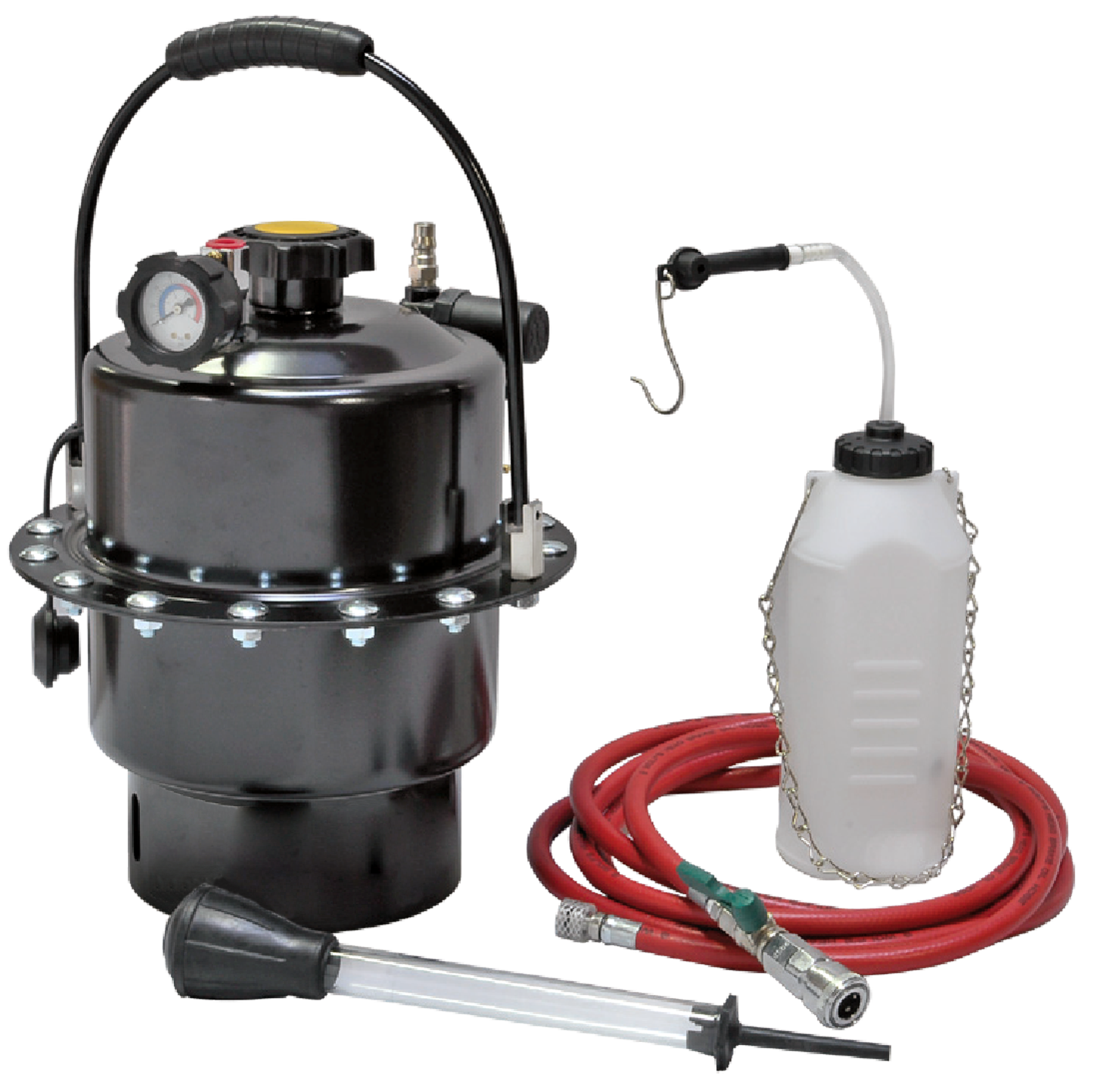

Brake bleeding device, 5 l

Item no.: 01498L
EAN: 4033592062275

Information about the product


for the bleeding of brake and clutch systems, with 5 liter tank and collecting bottle for brake fluid at the bleeding nipple.

  • A rubber membrane devides the compressed air and brake fluid and prevents intrusion of water
  • Optimum working pressure of 1.2 bar can be adjusted by pressure regulating valve on the device
  • With relief valve and 3,5 m filling hose
  • Incl. refill adapter for all popular applications (Euro-adapter: Audi, BMW, VW, Opel, Ford)

Technical data

Width 180 mm
Weight 1.75 kg
Height 190 mm
Length 270 mm
Air consumption 125 l/min
Product quality Premium
Min./max. working pressure 5 - 8 bar
Compressed air connection 1/4 inch

More images

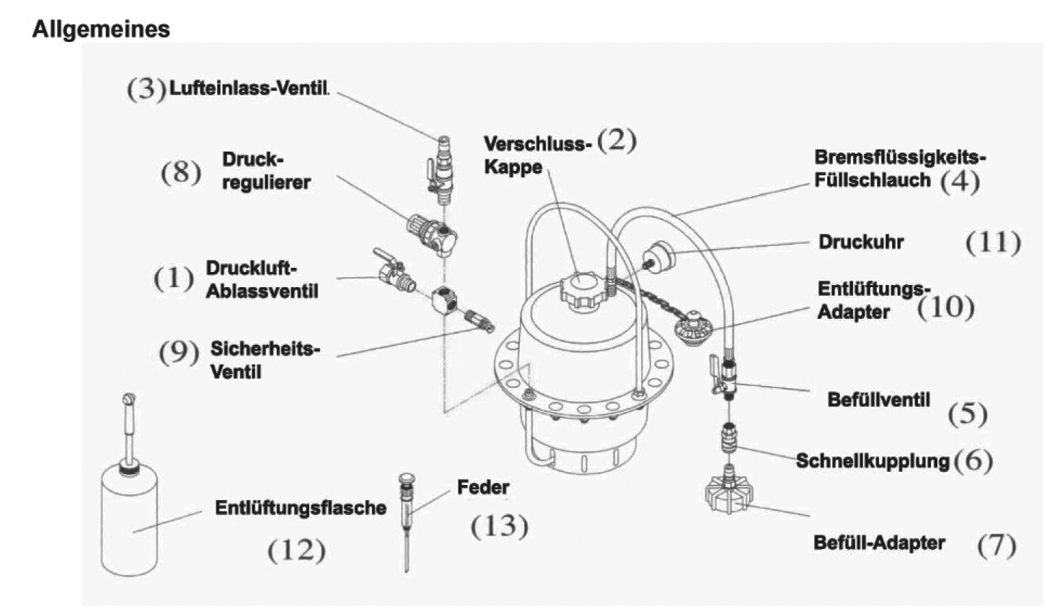

Detailed images

Application images

Vehicle types

Brand Order type


Item no. variant Name
01499L - Adapter set for surge tank, 8-piece
01479L - Brake pedal retaining tool

Spare and wear parts

Item no. variant Name
08493L - Hose, flexible, 1 m
01427L - Rubber vent hole
01498L-F - Backup bottle
01498L-S - Filling hose
01498L-A - Adapter for filling hose
