Vibro pneumatic chisel set


Item no.: S3211
EAN: 4033592082228

.

Information about the product

Description

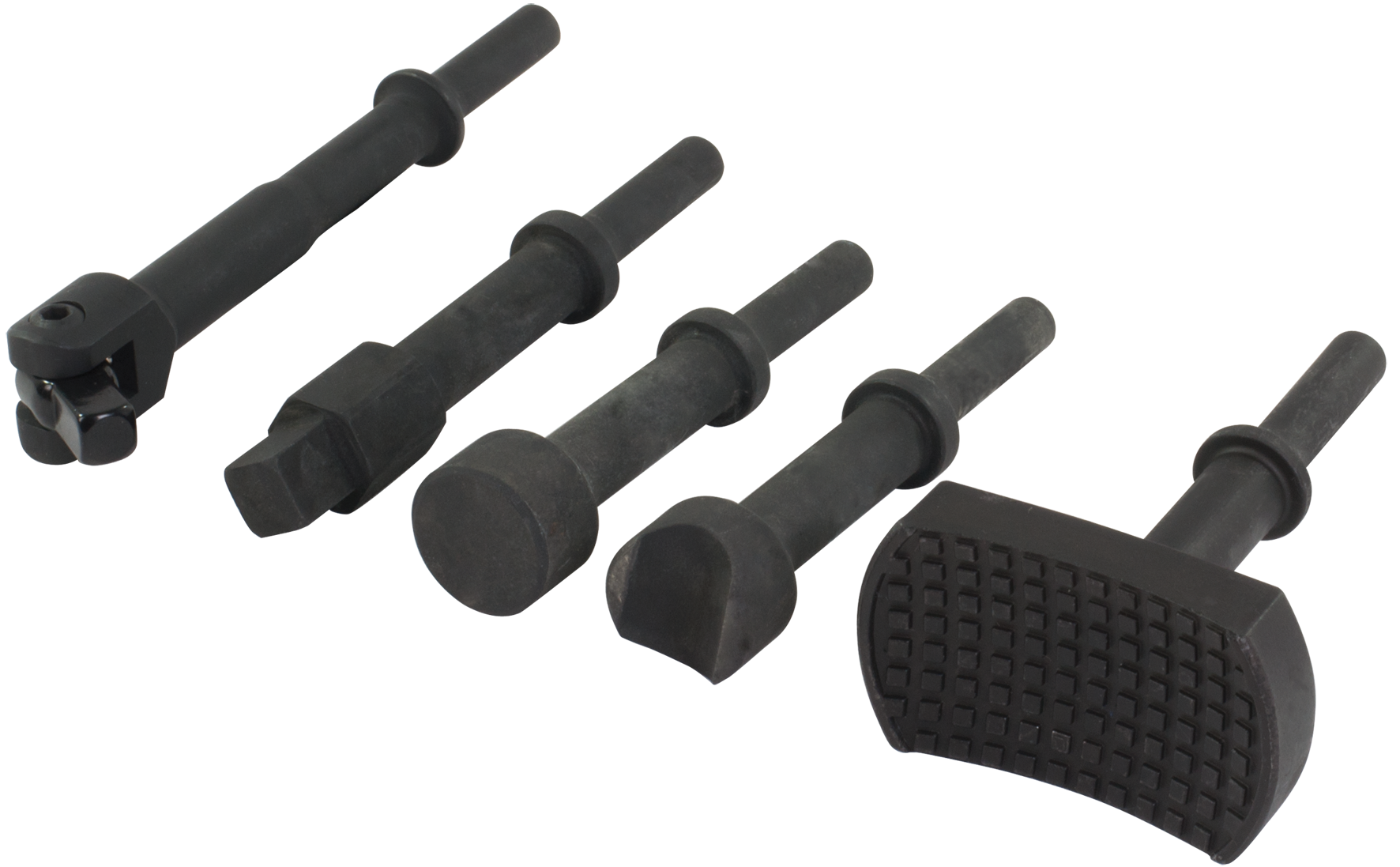

contains 4 different impact chisels with different profiles.
ideal for support e.g.:

  • when loosening nuts and screw connections which have rusted tight
  • for pressing the supporting joint cone out of the rear axle
  • with rust solvents, since they penetrate deeper due to the vibration
  • incl. compressed air nipple 1/4"
  • with quick-action chuck
  • with backlash damping
  • stroke rate: 2100/min.
  • chisel shaft: around 10 mm
  • working stroke: 10 mm
  • working pressure: 6.2 bar



Technical data

Number of Parts [parts] 8
Baulänge [mm] 290
Length [mm] 290
Stroke [mm] 10
Width [mm] 170
Height [mm] 53
Quality Premium
Weight [kg] 4.80000
Working pressure [bar] 6,3
Impact Count [strikes/min] 2100

More images

Detailed images

Application images

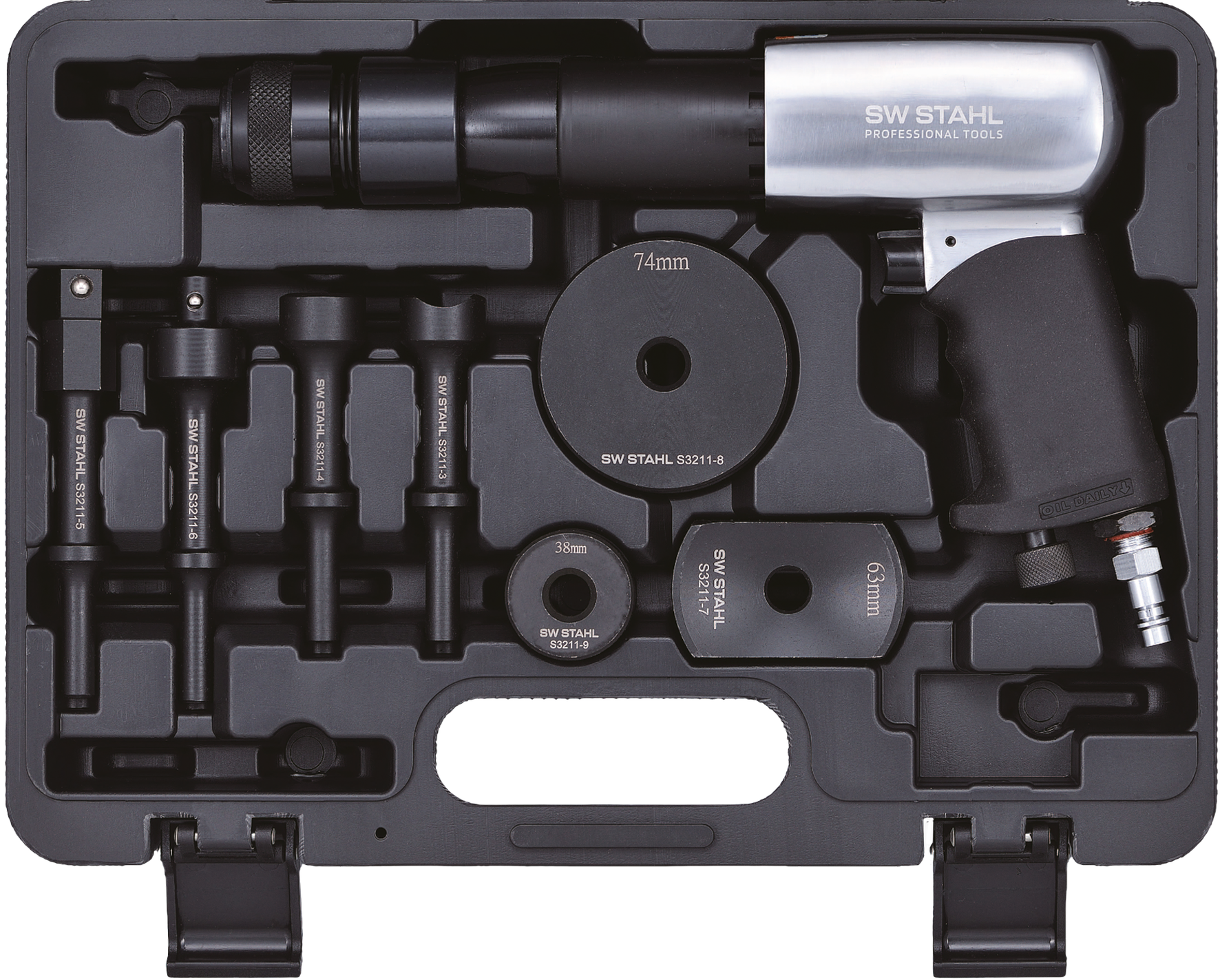

Scope of delivery

Item no. variant Name Quantity
S3211-3 - Vibrating chisel 1
S3211-4 - Vibrating chisel 1
S3211-5 - Vibrating chisel 1
S3211-6 - Push-out attachment 1
S3211-7 - Half-round IMPACT bit 1
S3211-8 - Round IMPACT bit 1
S3211-9 - Round IMPACT bit 1
S3211-10 - Replacement for rubber grommet 1

Accessories

Item no. variant Name
S3211-2 - Vibro-chisel for VAG clamping screw, 3-piece
10100L - Separating fork set, 6-piece
S3215 - Needle scaler attachment
