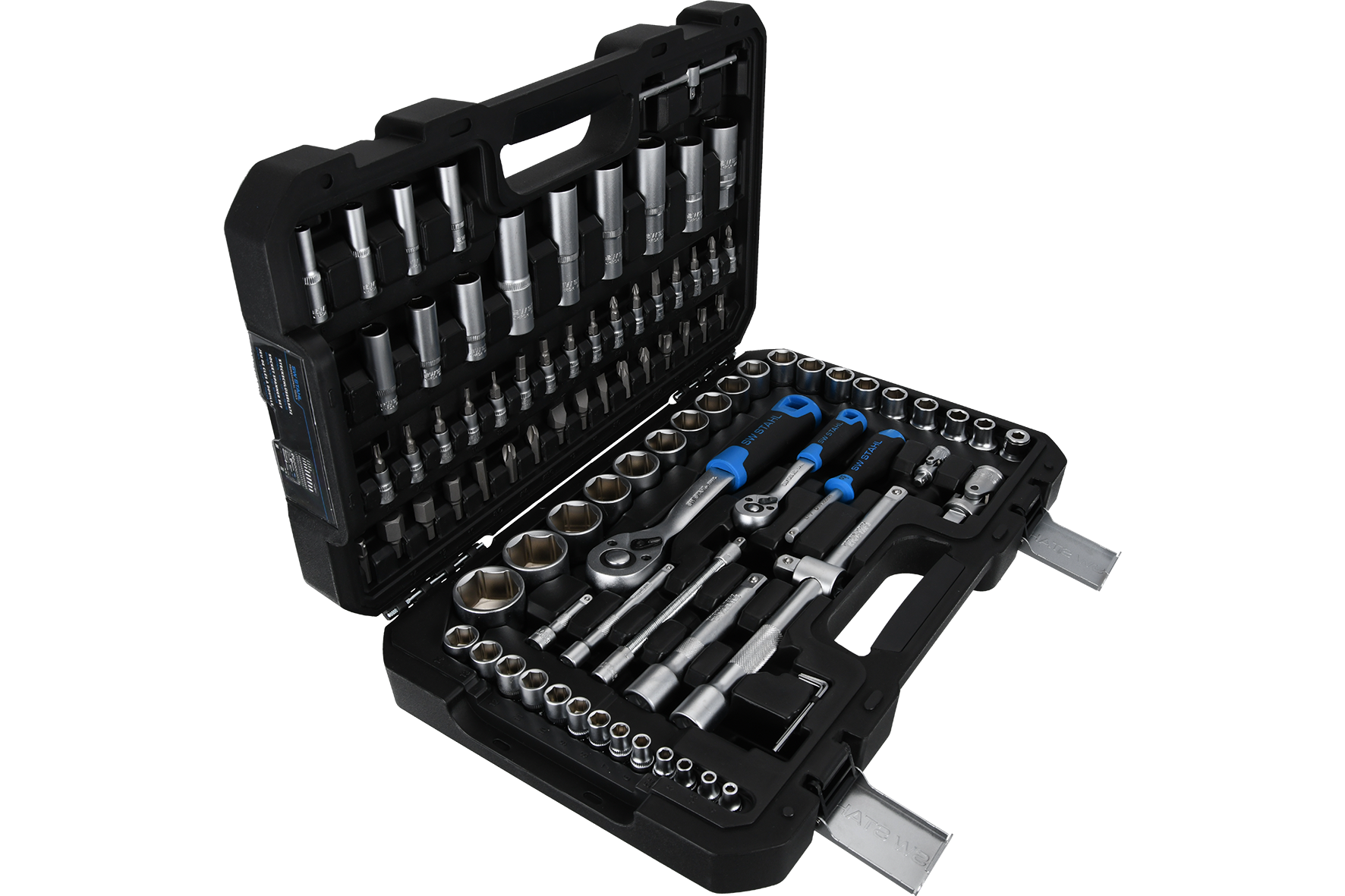

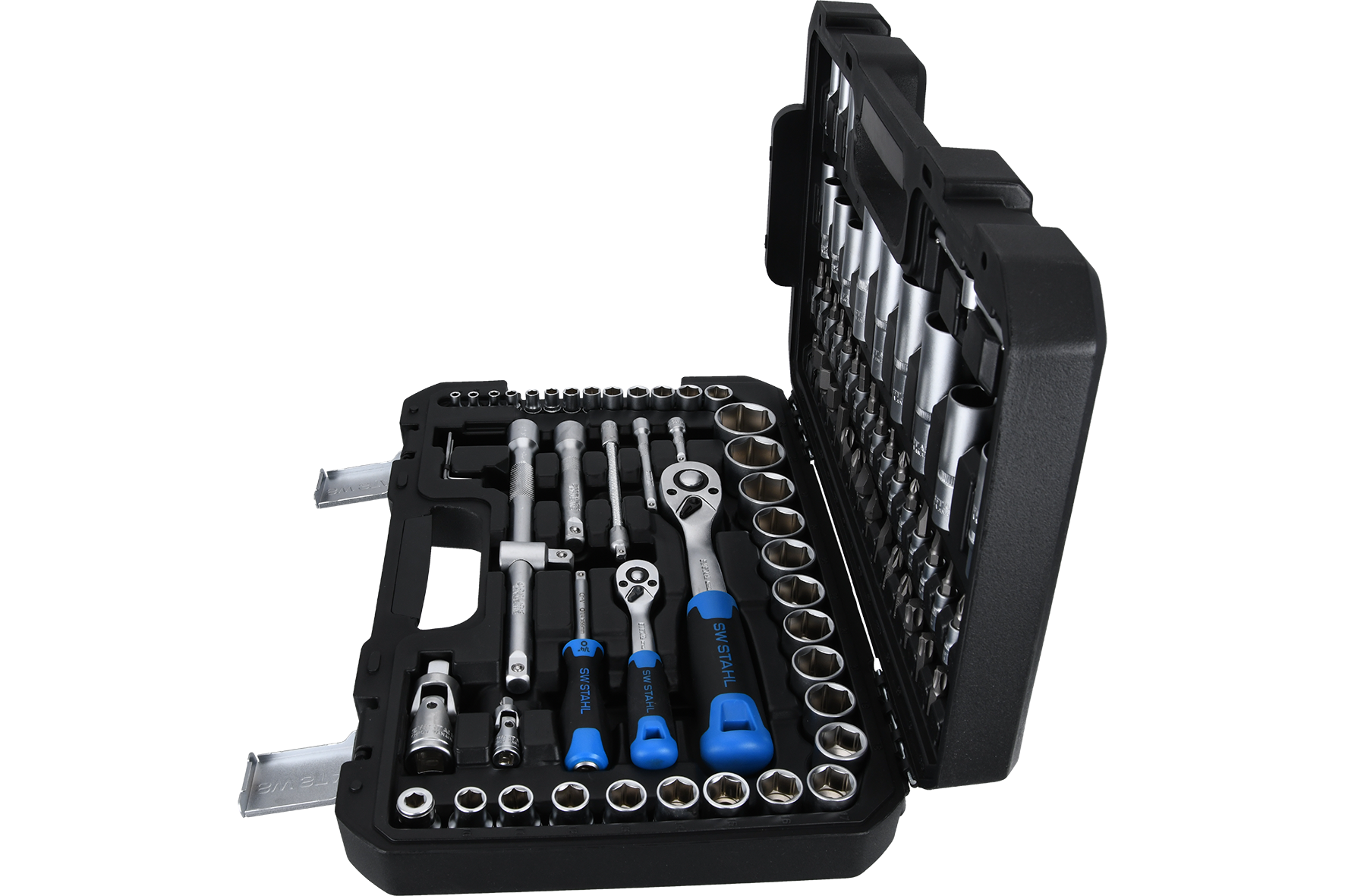

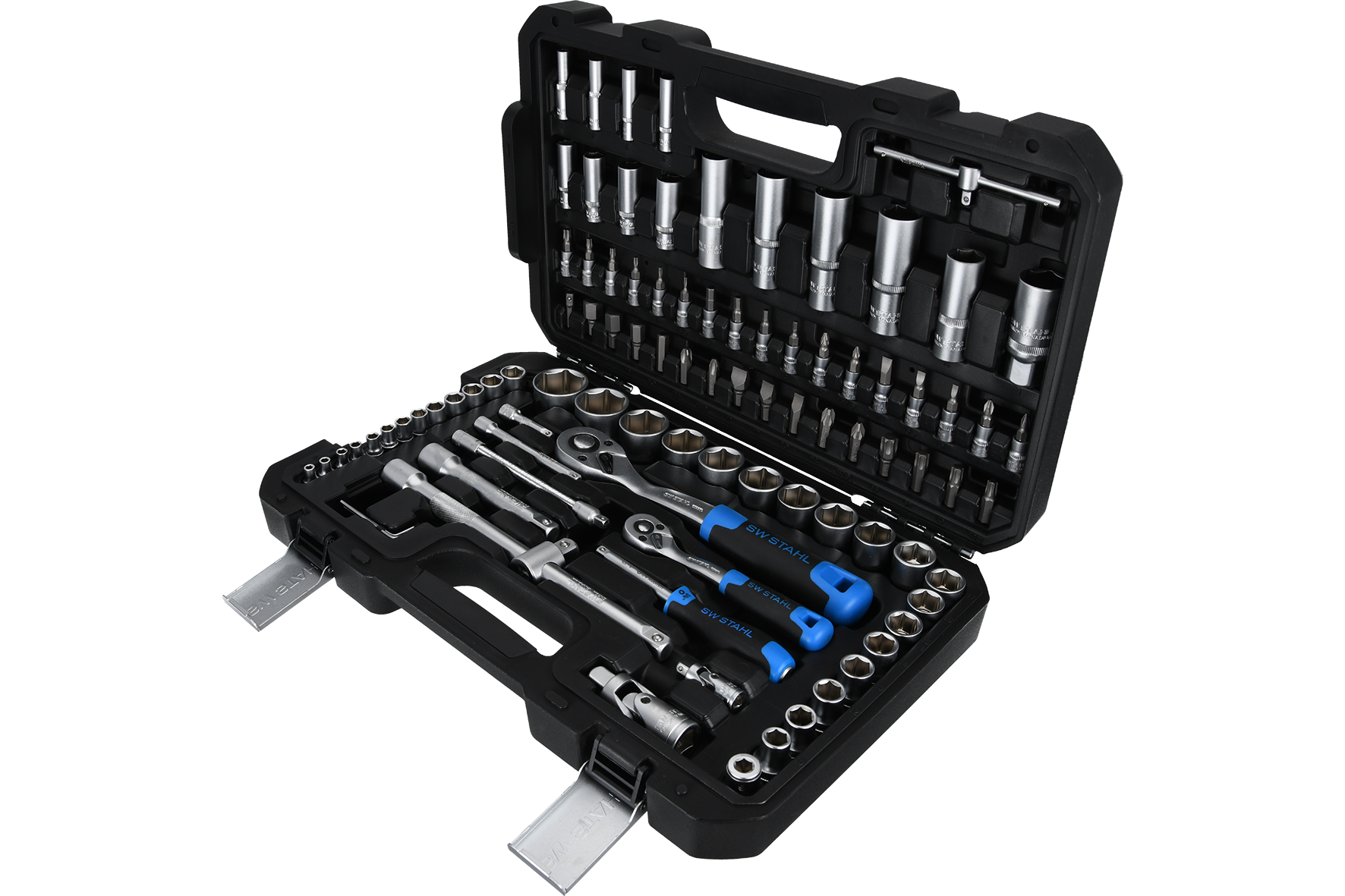

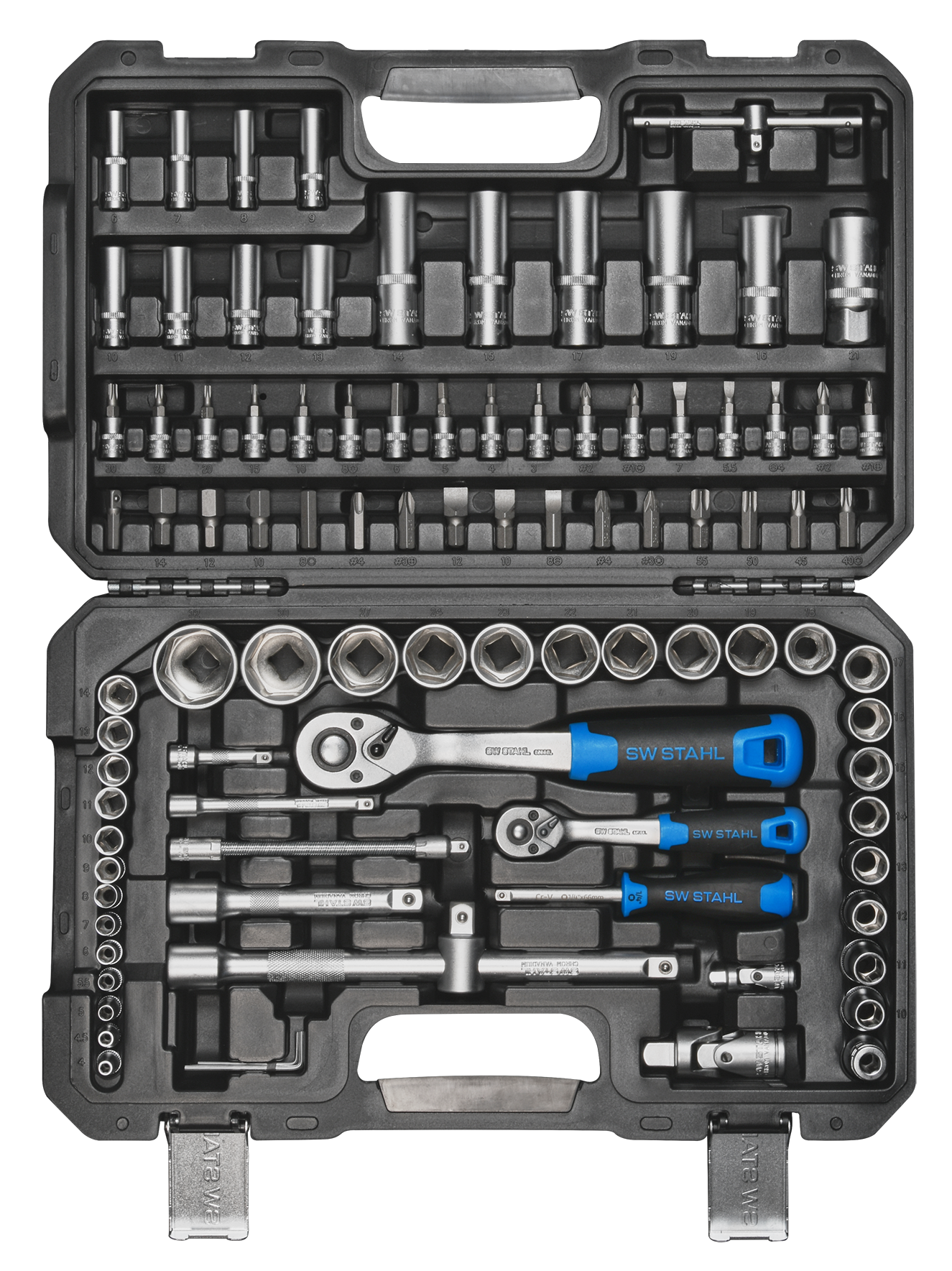

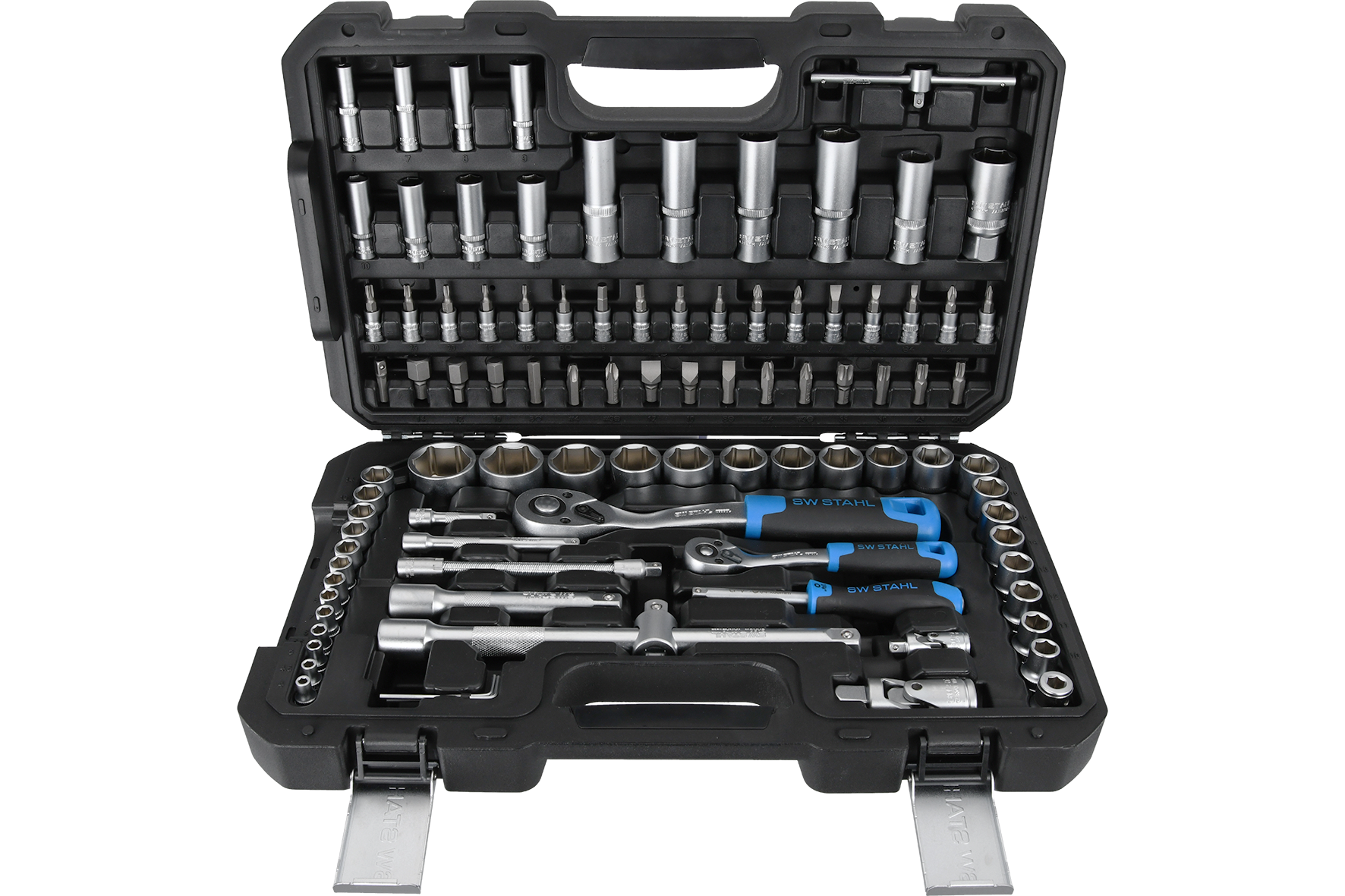

Socket spanner set, 1/4", 1/2", 97-piece


Item no.: 07797L
EAN: 4033592139298


Information about the product

Description

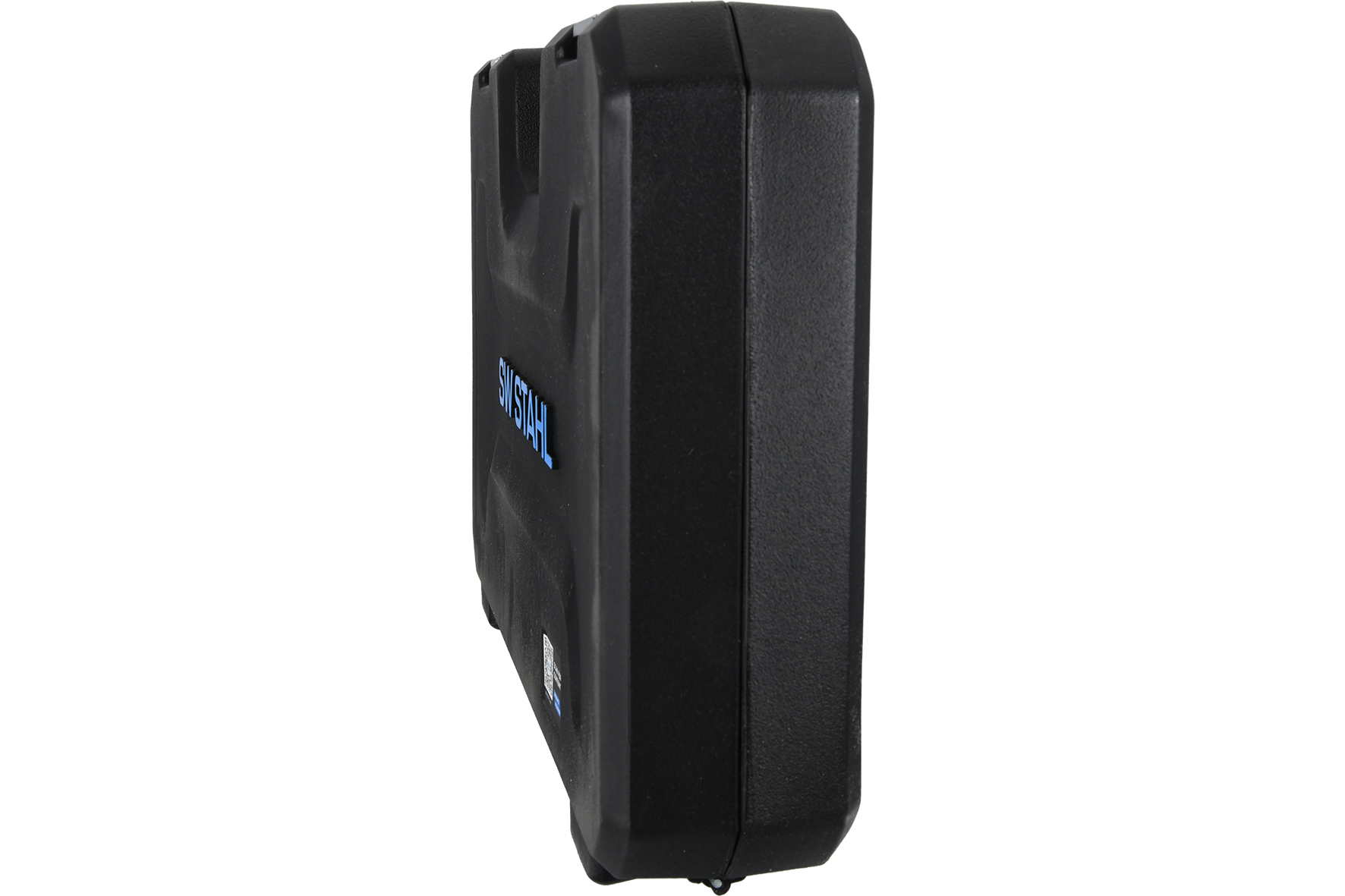

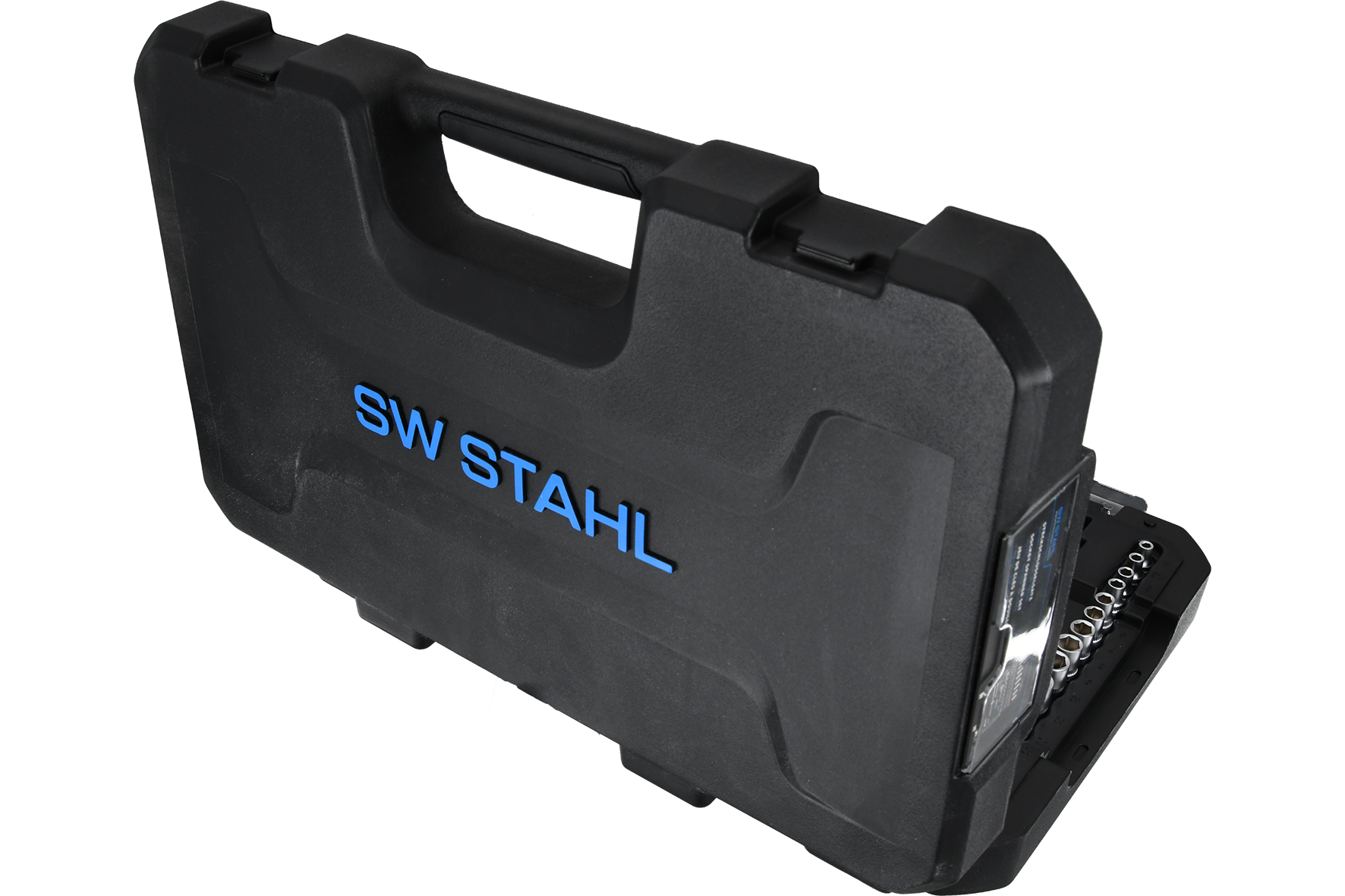

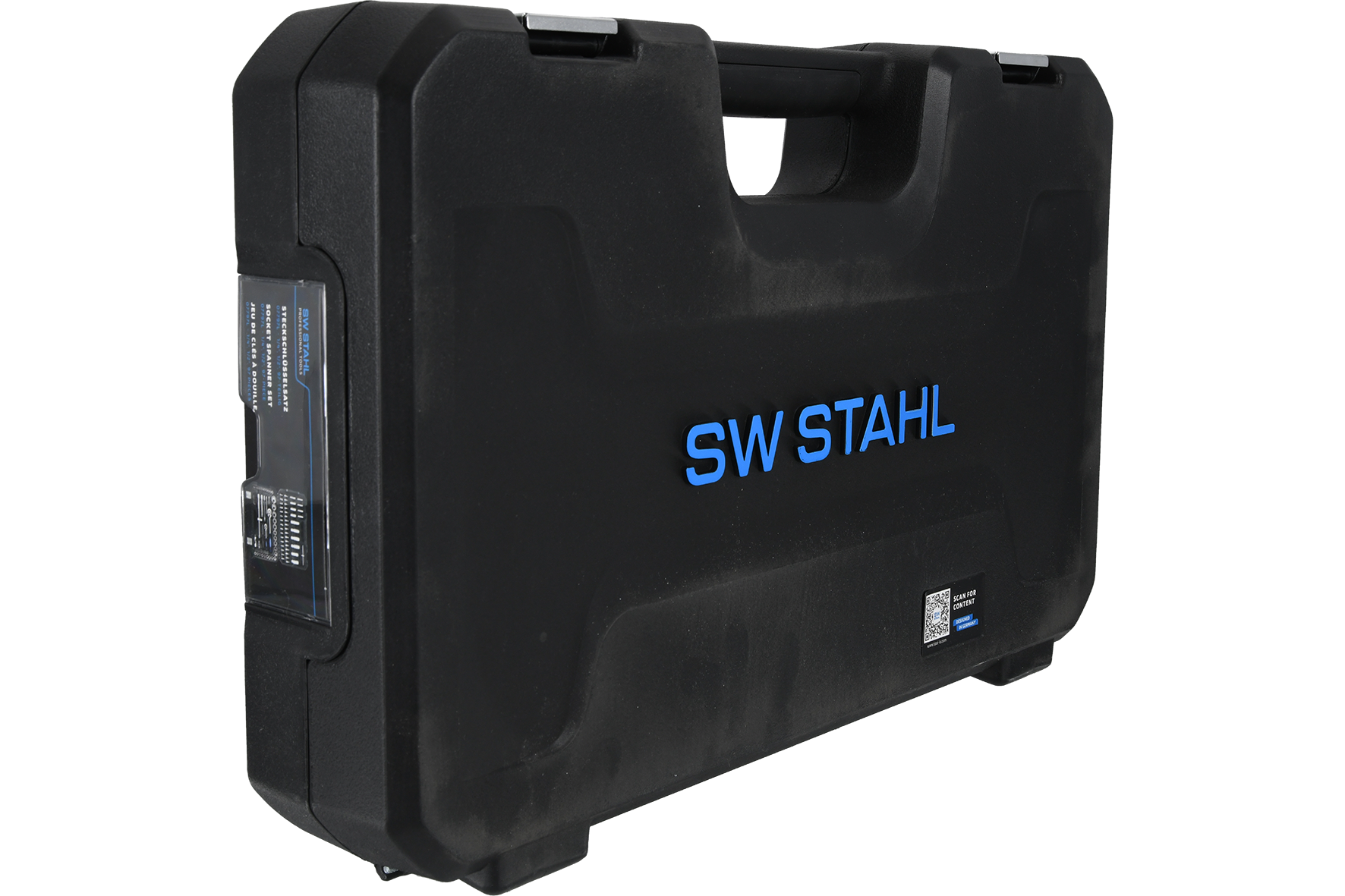

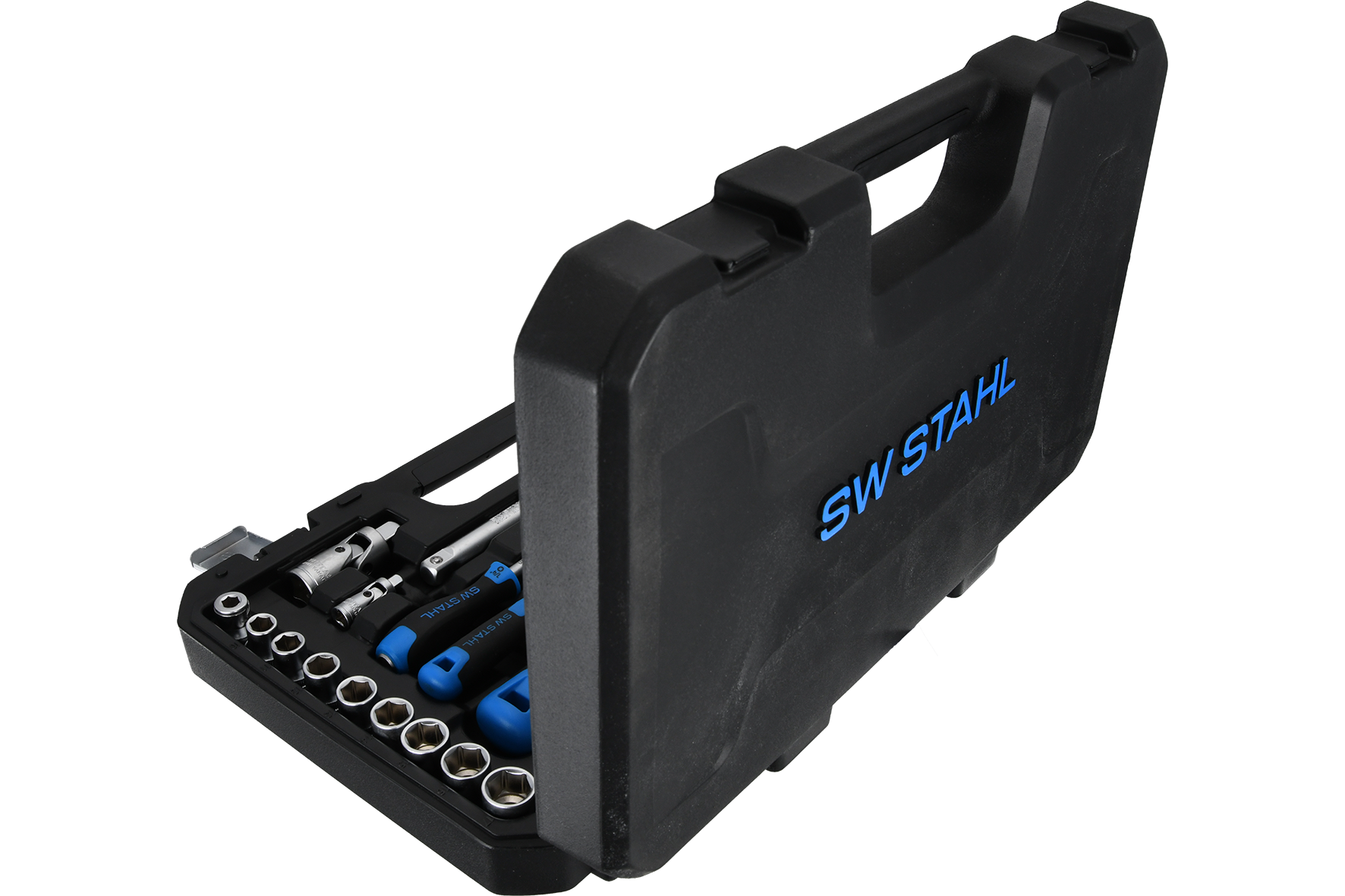

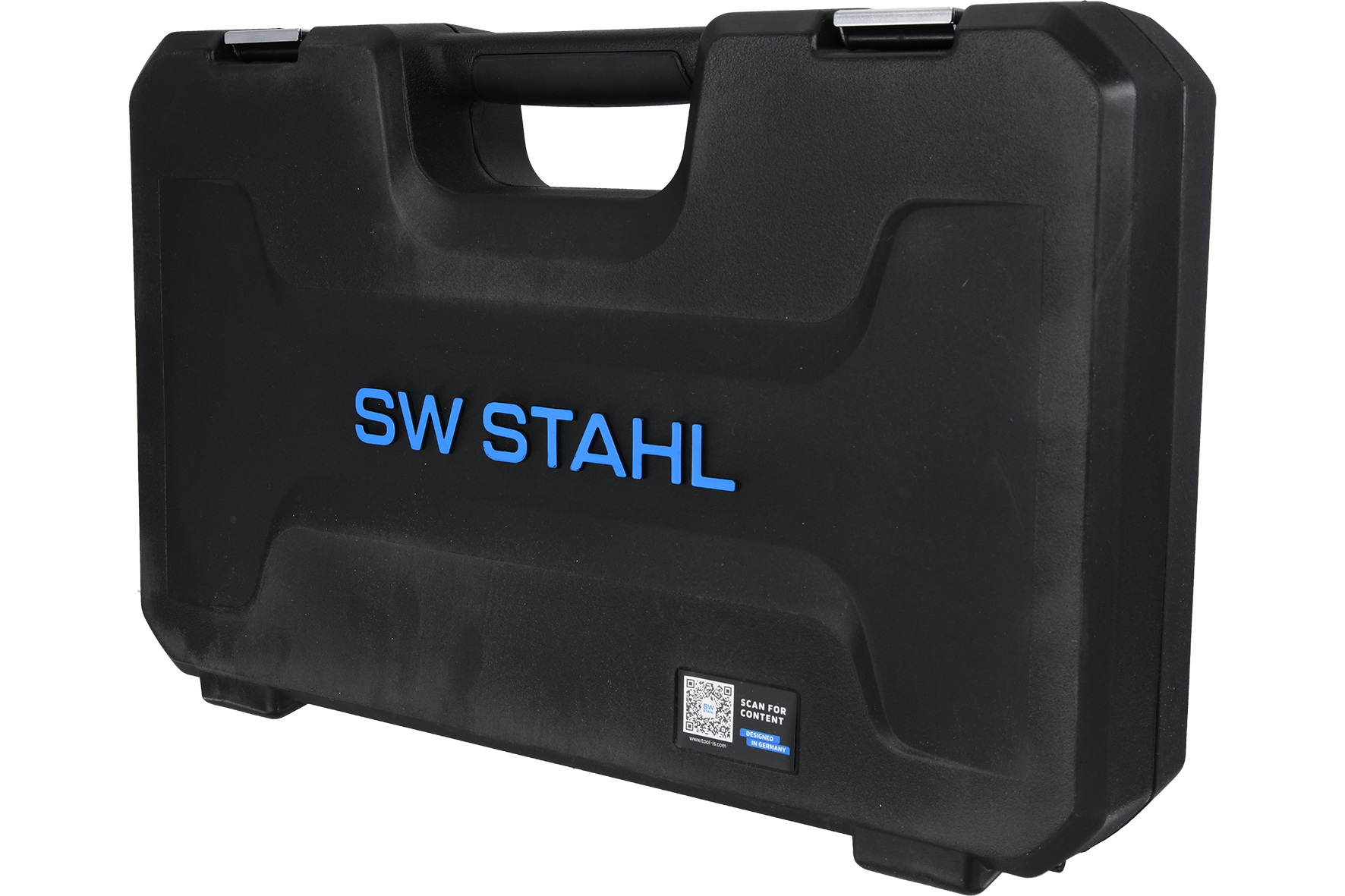

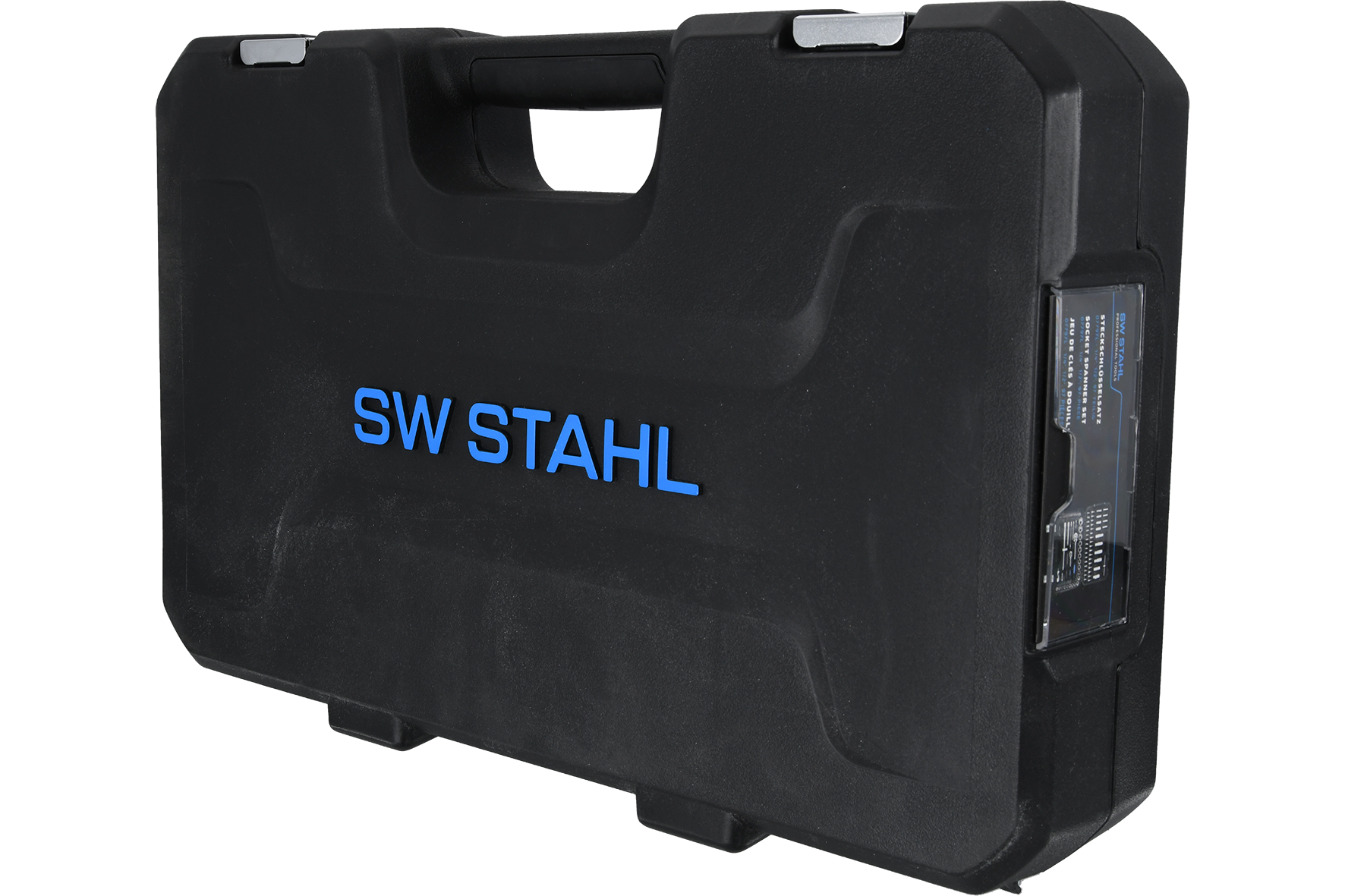

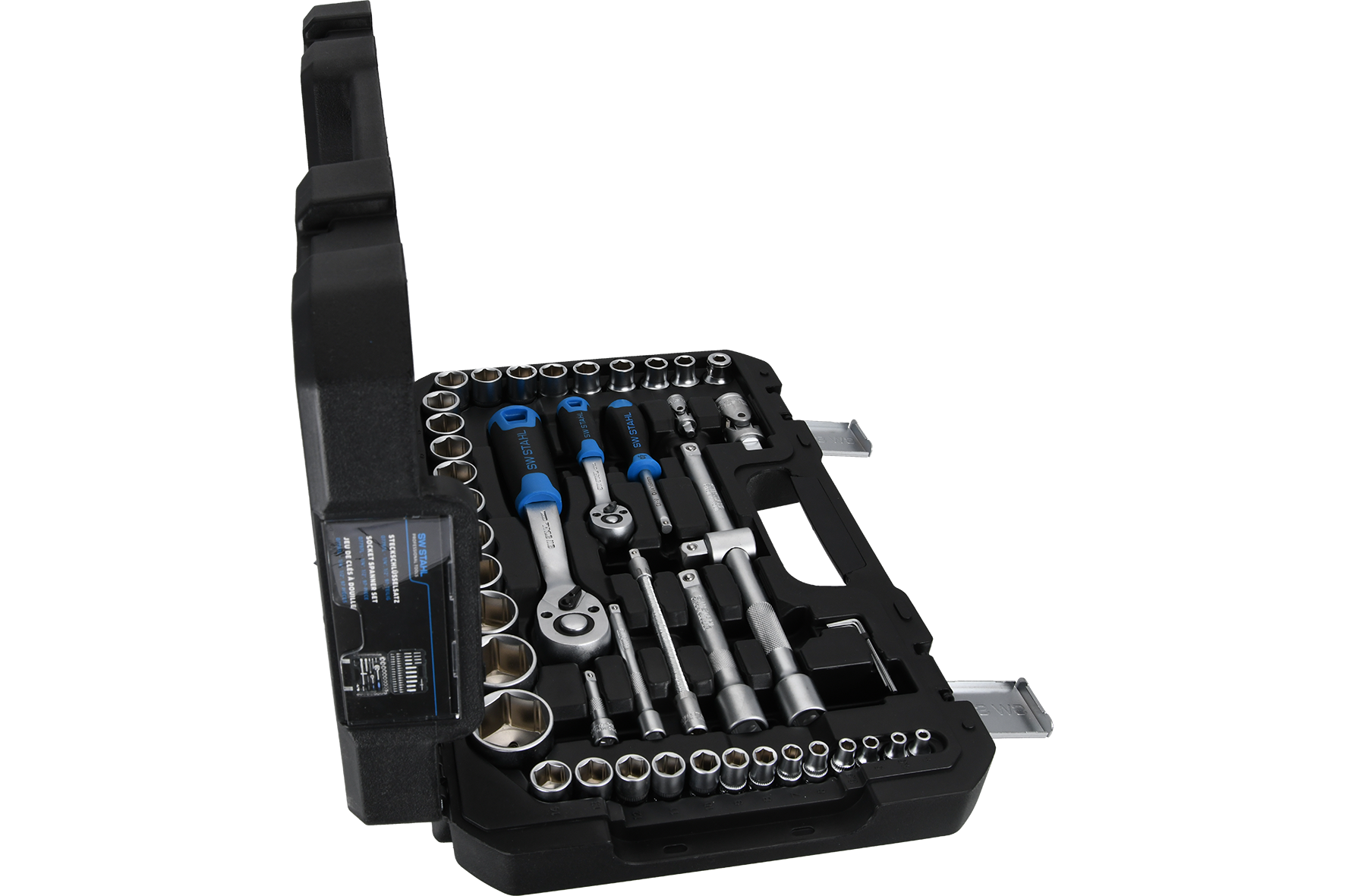

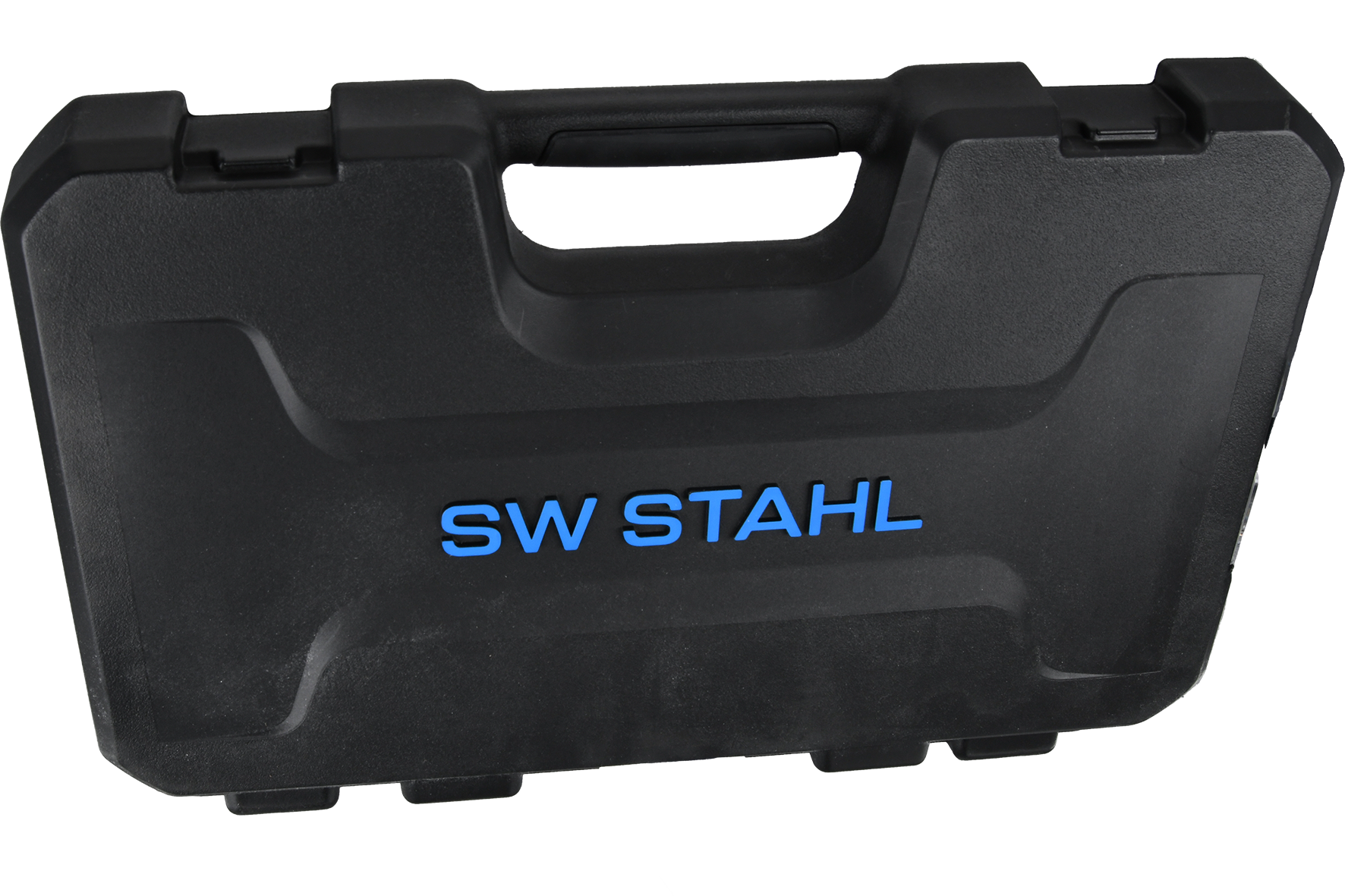

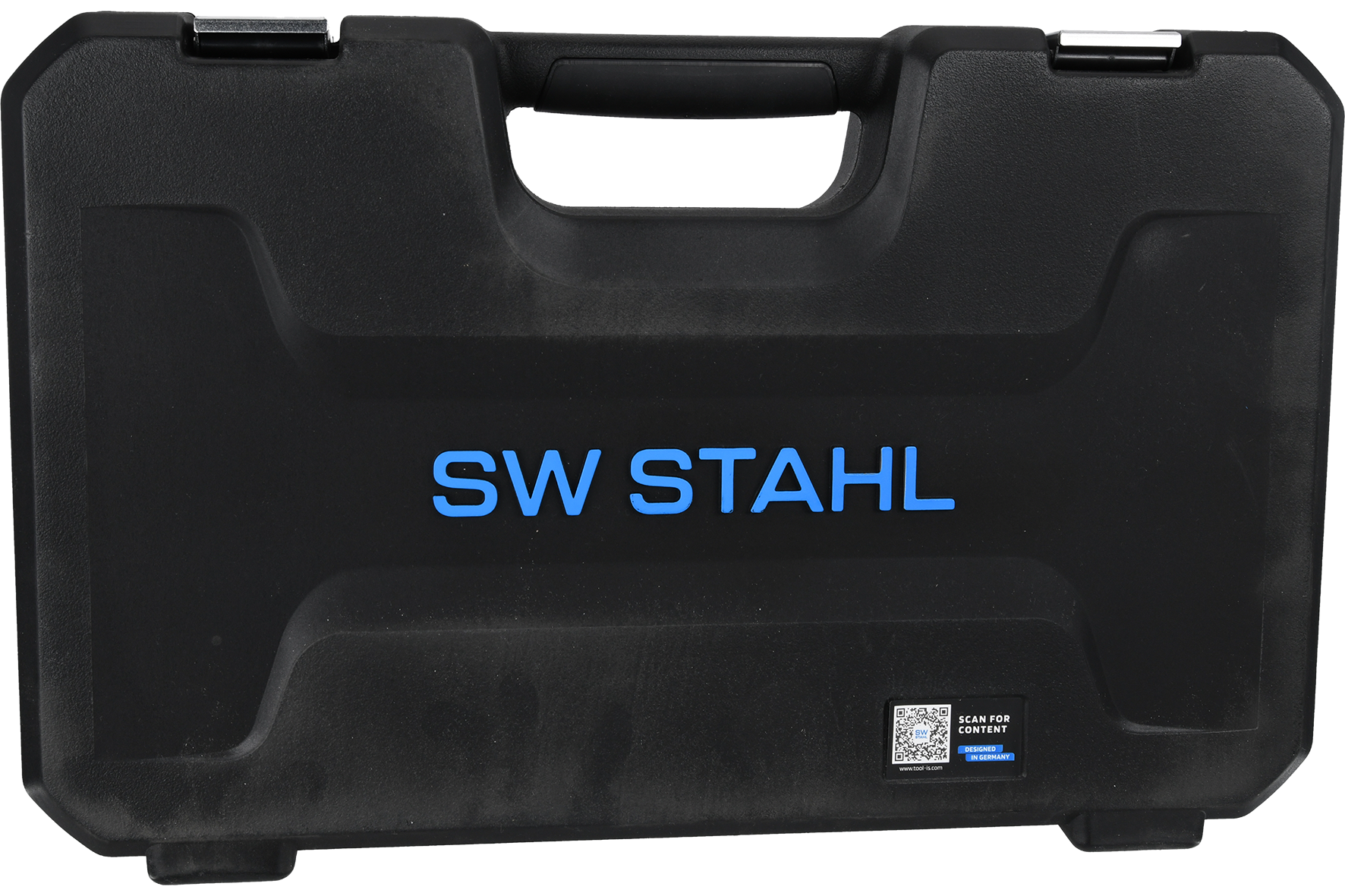

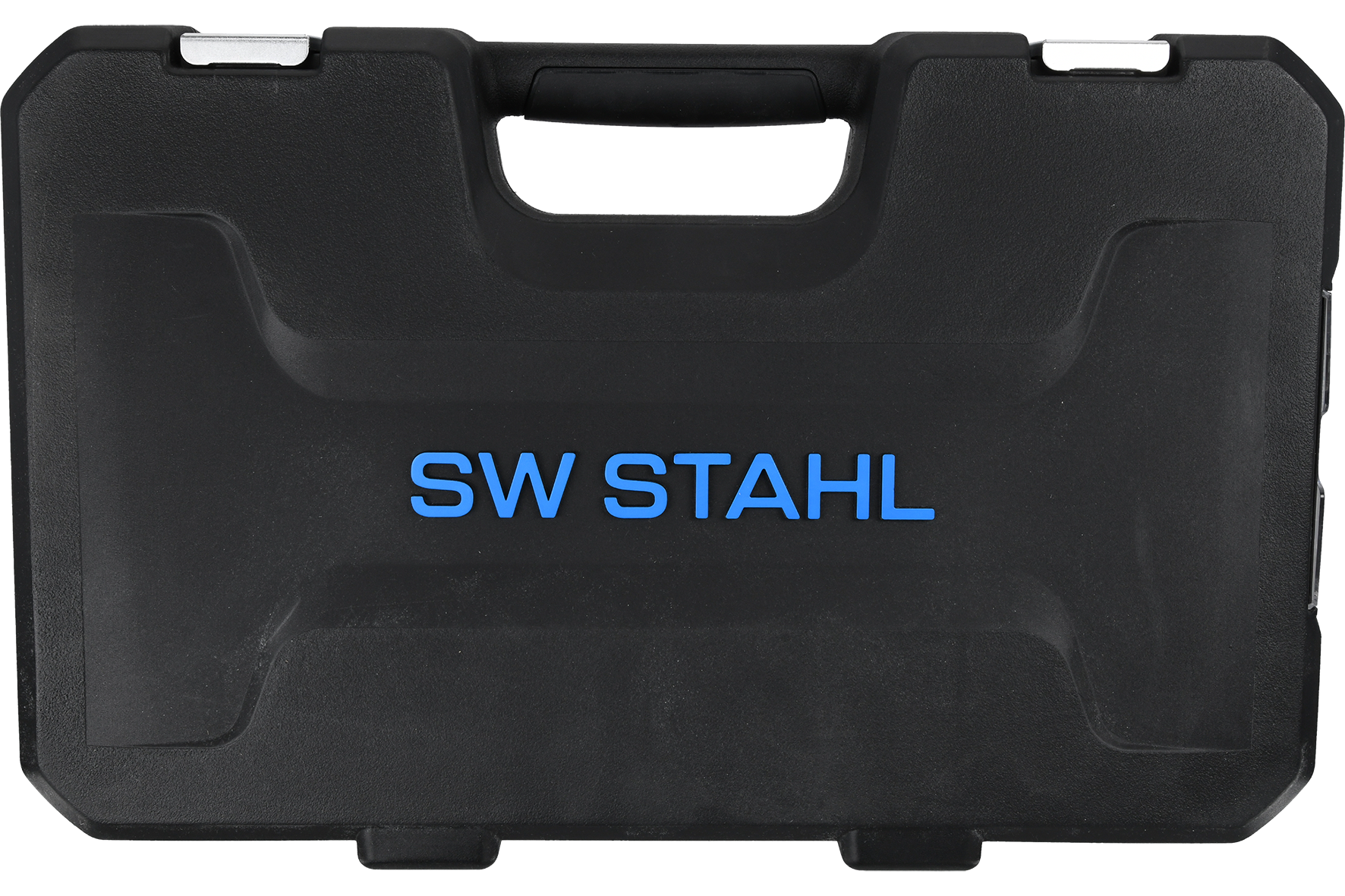

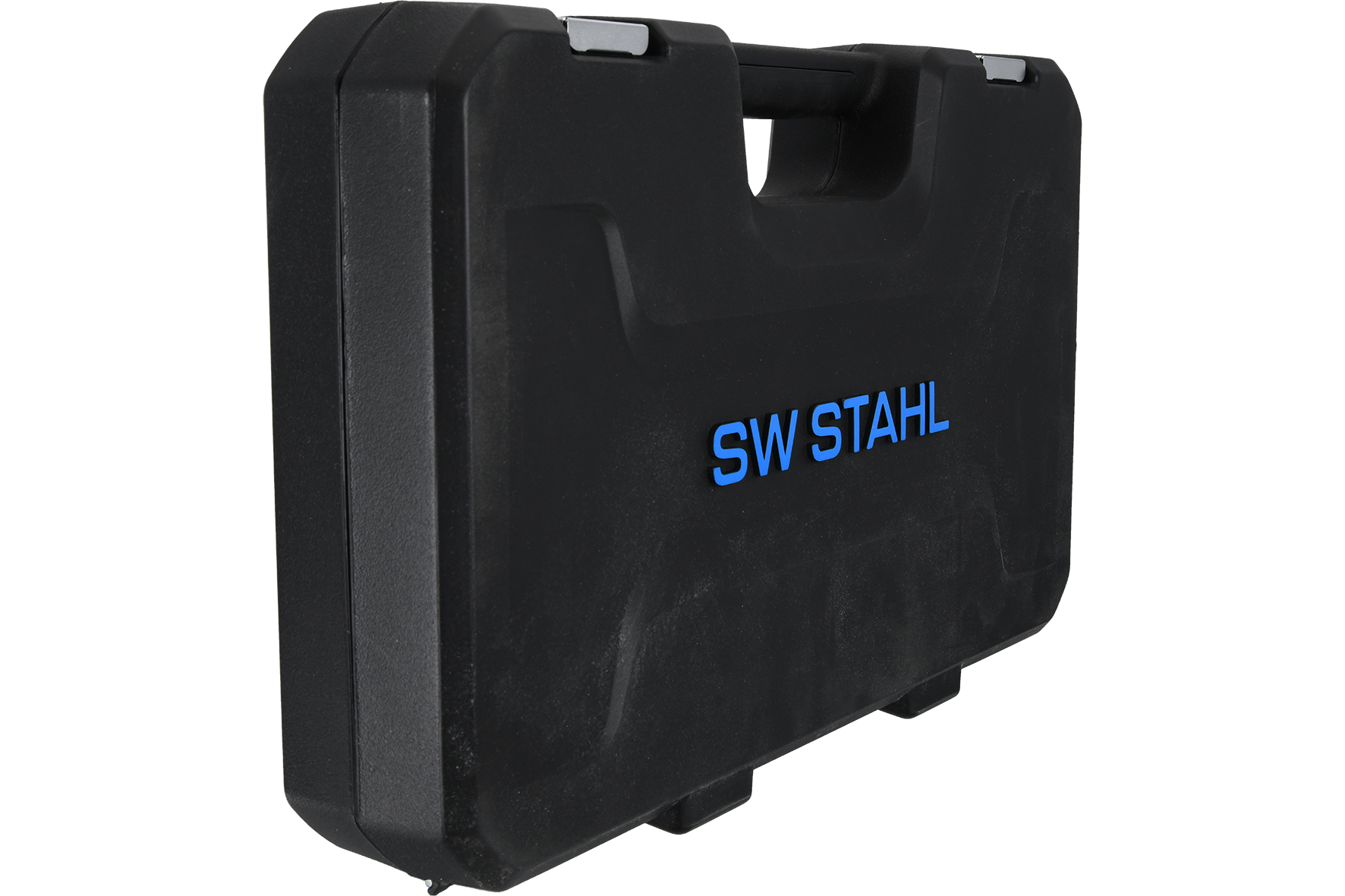

SW STAHL blow mold case "Designed in Germany" - with separable case and inner foam to avoid rust

Hardness and torque according to DIN, Chromium vanadium, sockets in hexagon profile for maximum torque

With 6,3 mm (1/4") drive:

  • 1 each hexagon socket 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
  • 1 each hexagon socket, extra long 6, 7, 8, 9, 10, 11, 12, 13 mm
  • 1 each bit socket, T-profile T8, T10, T15, T20, T25, T30
  • 1 each bit socket, cross slot PH1, PH2
  • 1 each bit socket, cross slot PZ1, PZ2
  • 1 each bit socket, slot 4, 5.5, 7 mm
  • 1 each bit socket, inner hexagon 3, 4, 5, 6 mm
  • 1 each extension 50, 100 mm
  • Flexible extension 150 mm
  • Reversible ratchet wrench 145 mm, 72 teeth
  • bit socket driver 150 mm
  • Sliding handle 110 mm
  • Adaptor for 6.3 mm bits (1/4")
  • Cardan joint

With 12,5 mm (1/2") drive:

  • 1 each hexagon socket 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 27, 30, 32 mm
  • 1 each hexagon socket, extra long 14, 15, 17, 19 mm
  • 1 each spark plug socket 16, 21 mm
  • 1 extension 125, 250 mm
  • Sliding block for extension in 250 mm
  • Reversible ratchet wrench 250 mm, 72 teeth
  • Adapter for 8 mm bits
  • Cardan joint

Following bits in 8 mm hex drive x 30 mm length:

  • 1 each T-profile bit T40, T45, T50, T55
  • 1 each cross-slot bit PH3, PH4
  • 1 each cross slot bit PZ3, PZ4
  • 1 each plain slot bit 8, 10, 12 mm
  • 1 each inner hexagon bit 8, 10, 12, 14 mm

Allen keys:

  • Each allen key 1.5, 2, 2.5 mm

Technical data

Antriebs-Vierkant [mm] 6,3 (1/4")
Number of tools 97
Antriebs-Vierkant [mm] 12,5 (1/2")
Material Chrome Vanadium Steel
for components see parts list
Quality Premium
Surface Matt, chrom-plated
Length [mm] 425
Width [mm] 265
Height [mm] 85
Weight [kg] 6.50000

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
05795L L SB Reversing ratchet, 1/4" 1
05995L L SB Reversing ratchet, 1/2" 1
05704L L SB Extension 50 mm - 1/4" 1
05718L - Extension 100 mm - 1/4" 1
05708L - Extension, flexible, 1/4", 150 mm 1
05707L L SB Sliding handle, 1/4" 1
EH-2 - Socket adapter, 1/4" hexagon to 1/4" square, 25 mm 1
05904L L SB Extension, 1/2", 125 mm 1
05905L L SB Extension, 1/2", 250 mm 1
05907L L SB Sliding handle, 1/2" 1
05703L L SB Cardan joint, 1/4" 1
05903L L SB Cardan joint, 1/2" 1
04701L - Allen key, hexagon, 1,5 mm 1
04702L - Allen key, hexagon, 2 mm 1
04703L - Allen key, hexagon, 2,5 mm 1
05401L L SB Spanner socket, 1/4", 4 mm 1
05402L L SB Spanner socket, 1/4", 4,5 mm 1
05403L L SB Spanner socket, 1/4", 5 mm 1
05404L L SB Spanner socket, 1/4" , 5,5 mm 1
05405L L SB Spanner socket, 1/4" , 6 mm 1
05406L L SB Spanner socket, 1/4", 7 mm 1
05407L L SB Spanner socket, 1/4", 8 mm 1
05408L L SB Spanner socket, 1/4" , 9,0 mm 1
05409L L SB Spanner socket, 1/4", 10 mm 1
05410L L SB Spanner socket, 1/4" , 11,0 mm 1
05411L L SB Spanner socket, 1/4", 12 mm 1
05412L L SB Spanner socket, 1/4", 13 mm 1
05413L L SB Spanner socket, 1/4", 14 mm 1
05601L L SB Spanner socket 1/2", 10 mm 1
05602L L SB Spanner socket 1/2", 11 mm 1
05603L L SB Spanner socket 1/2", 12 mm 1
05604L L SB Spanner socket, 1/2", 13 mm 1
05605L L SB Spanner socket 1/2", 14 mm 1
05606L L SB Spanner socket, 1/2", 15 mm 1
05607L L SB Spanner socket, 1/2", 16 mm 1
05608L L SB Spanner socket, 1/2", 17 mm 1
05609L L SB Spanner socket, 1/2", 18 mm 1
05610L L SB Spanner socket, 1/2", 19 mm 1
05611L L SB Spanner socket 1/2", 20 mm 1
05612L L SB Spanner socket 1/2", 21 mm 1
05613L L SB Spanner socket, 1/2", 22 mm 1
05614L L SB Spanner socket 1/2", 23 mm 1
05615L L SB Spanner socket, 1/2", 24 mm 1
05617L L SB Spanner socket 1/2", 27 mm 1
05619L L SB Spanner socket 1/2", 30 mm 1
05620L L SB Spanner socket 1/2", 32 mm 1
05430-6,0 L SB Spanner socket, deep, 1/4", 6 mm 1
05430-7,0 L SB Spanner socket, deep, 1/4", 7 mm 1
05430-8,0 L SB Spanner socket, deep, 1/4", 8 mm 1
05430-9,0 L SB Spanner socket, deep, 1/4", 9 mm 1
05430-10,0 L SB Spanner socket, 1/4", 10 mm, deep 1
05430-11,0 L SB Spanner socket, deep, 1/4", 11 mm 1
05430-12,0 L SB Spanner socket, deep, 1/4", 12 mm 1
05430-13,0 L SB Spanner socket, deep, 1/4", 13 mm 1
05630-14 L SB Spanner socket, deep, 1/2", 14 mm 1
05630-15 L SB Spanner socket, deep, 1/2", 15 mm 1
05630-17 L SB Spanner socket, deep, 1/2", 17 mm 1
05630-19 L SB Spanner socket, deep, 1/2", 19 mm 1
07620L-ZK16 - Spark plug socket, 1/2", 16 mm 1
07620L-ZK21 - Spark plug socket, 1/2", 21 mm 1
IBO/8-8 - Screwdriver bit, 8 x 30 mm, hexagon, 8 mm 1
IBO/8-12 - Screwdriver bit, 8 x 30 mm, hexagon, 12 mm 1
IBO/8-10 - Screwdriver bit, 8 x 30 mm, hexagon, 10 mm 1
IBO/8-14 - Screwdriver bit, 8 x 30 mm, hexagon, 14 mm 1
IE/4-3 - Screwdriver bit, 1/4", hexagonal, 3 mm 1
IE/4-4 - Screwdriver bit, 1/4", hexagonal, 4 mm 1
IE/4-5 - Screwdriver bit, 1/4", hexagonal, 5 mm 1
IE/4-6 - Screwdriver bit, 1/4", hexagonal, 6 mm 1
KB/8-3 - Screwdriver bit, 8 x 30 mm, PH3 1
KB/8-4 - Screwdriver bit, 8 x 30 mm, PH4 1
KE/4-1 - Screwdriver bit, 1/4", cross 1 1
KE/4-2 - Screwdriver bit, 1/4", cross, PH2 1
PB/8-3 - Screwdriver bit, 8 x 30 mm, PZ3 1
PB/8-4 - Screwdriver bit, 8 x 30 mm, PZ4 1
PE/4-1 - Screwdriver bit, 1/4", PZ1 1
PE/4-2 - Screwdriver bit, 1/4", PZ2 1
SB/8-8 - Screwdriver bit, 8 x 30 mm, slot 8 mm 1
SB/8-10 - Screwdriver bit, 8 x 30 mm, slot 10 mm 1
SB/8-12 - Screwdriver bit, 8 x 30 mm, slot 12 mm 1
SE/4-4 - Screwdriver bit, slot, 1/4", 4 mm 1
SE/4-5 - Screwdriver bit, slot, 1/4", 5,5 mm 1
SE/4-7 - Screwdriver bit, slot, 1/4", 7 mm 1
TBO/8-T40 - Screwdriver bit, 8 mm, T profile, T40 1
TBO/8-T45 - Screwdriver bit, 8 x 30 mm, T45 1
TBO/8-T50 - Screwdriver bit, 8 x 30 mm, T50 1
TBO/8-T55 - Screwdriver bit, 8 x 30 mm, T55 1
TEO/4-T8 - Screwdriver bit 1/4", T-profile, T8 1
TEO/4-T10 - Screwdriver bit, 1/4", T-profile, T10 1
TEO/4-T15 - Screwdriver bit, 1/4", T-profile, T15 1
TEO/4-T20 - Screwdriver bit, 1/4", T-profile, T20 1
TEO/4-T25 - Screwdriver bit, 1/4", T-profile, T25 1
TEO/4-T30 - Screwdriver bit 1/4", T-profile, T30 1
05629L L SB Special adapter for 8mm screwdriver bits 1
