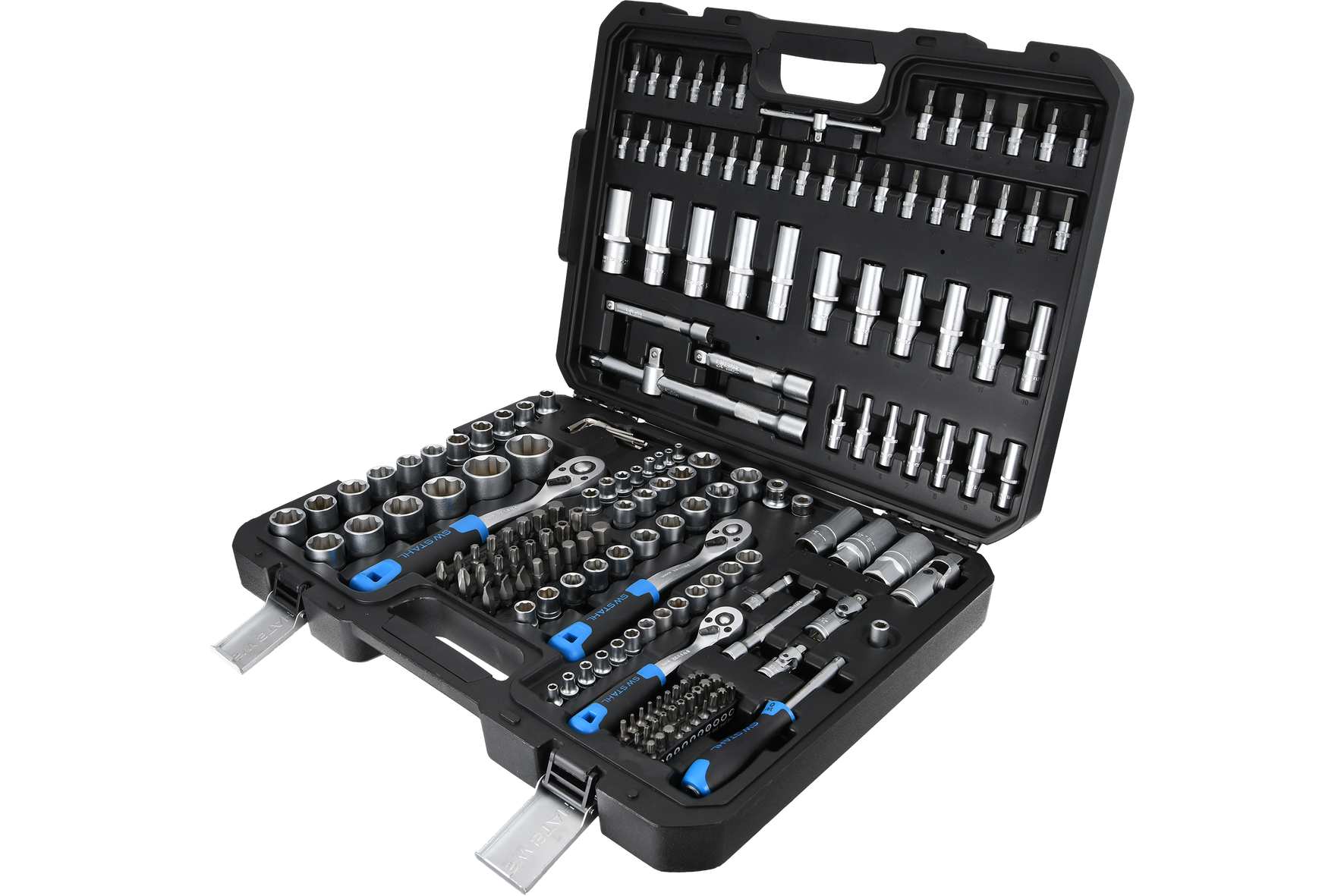

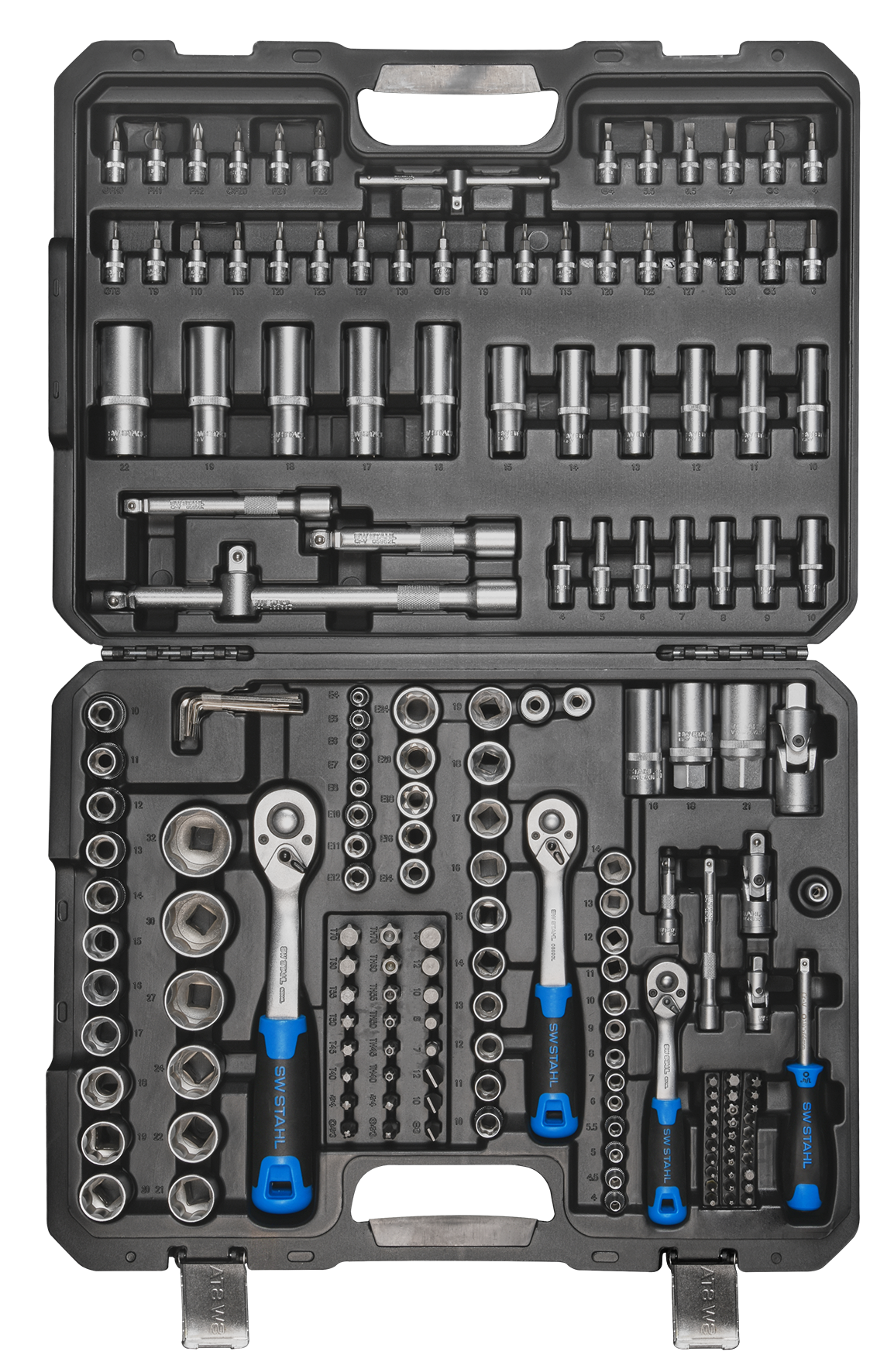

Socket spanner set, 1/4", 3/8", 1/2", 184-piece


Item no.: 07784L
EAN: 4033592139281

Information about the product

Description

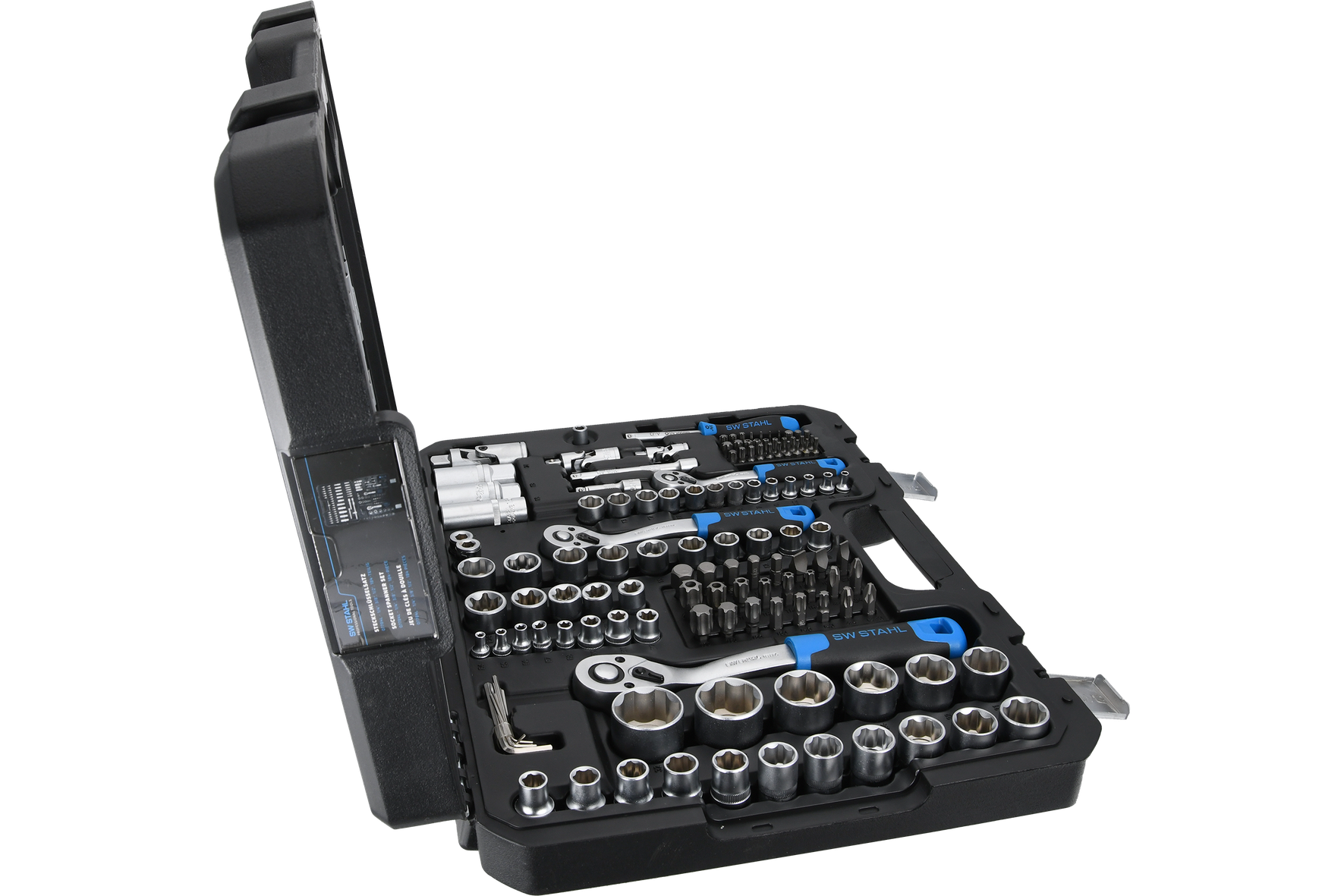

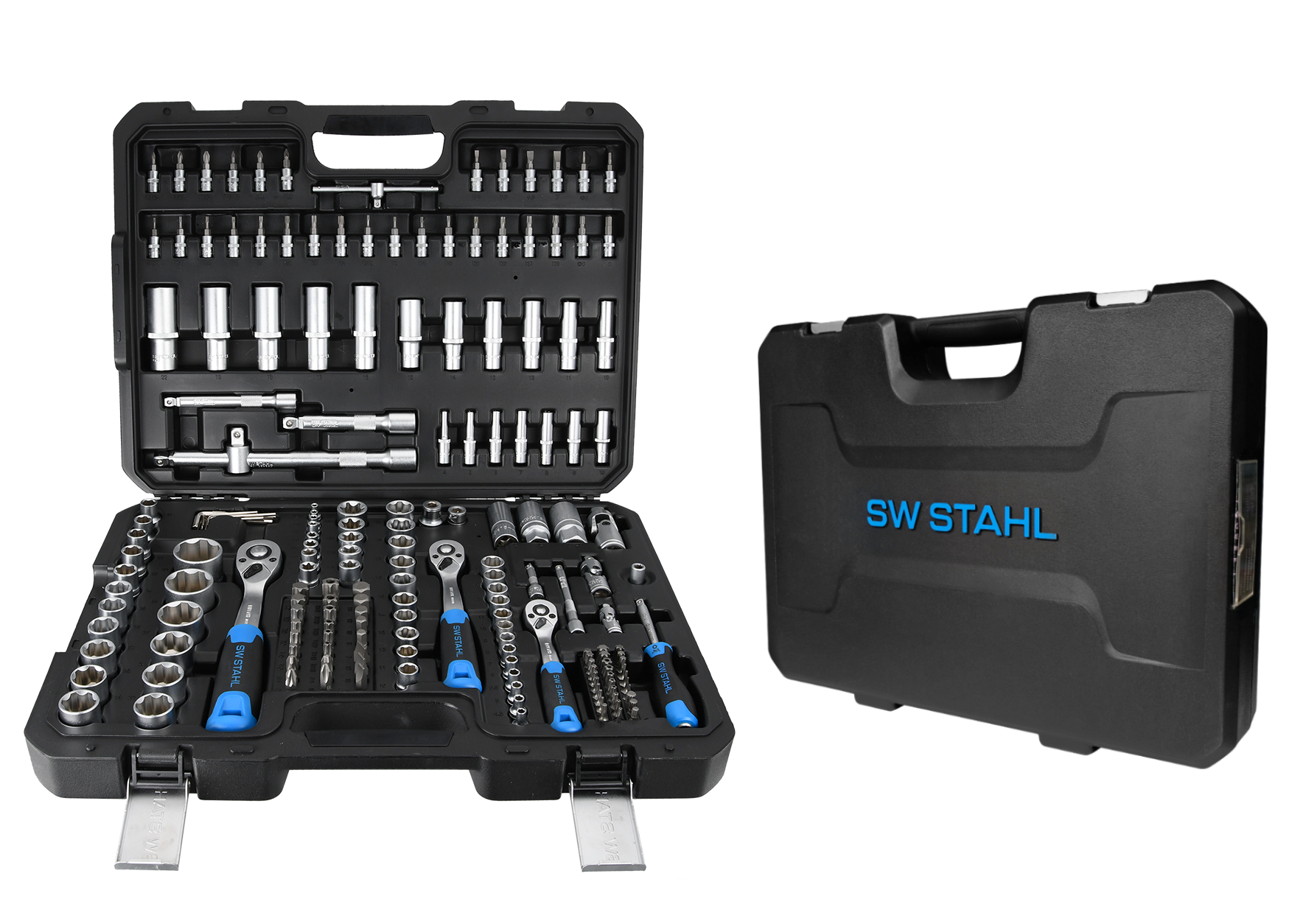

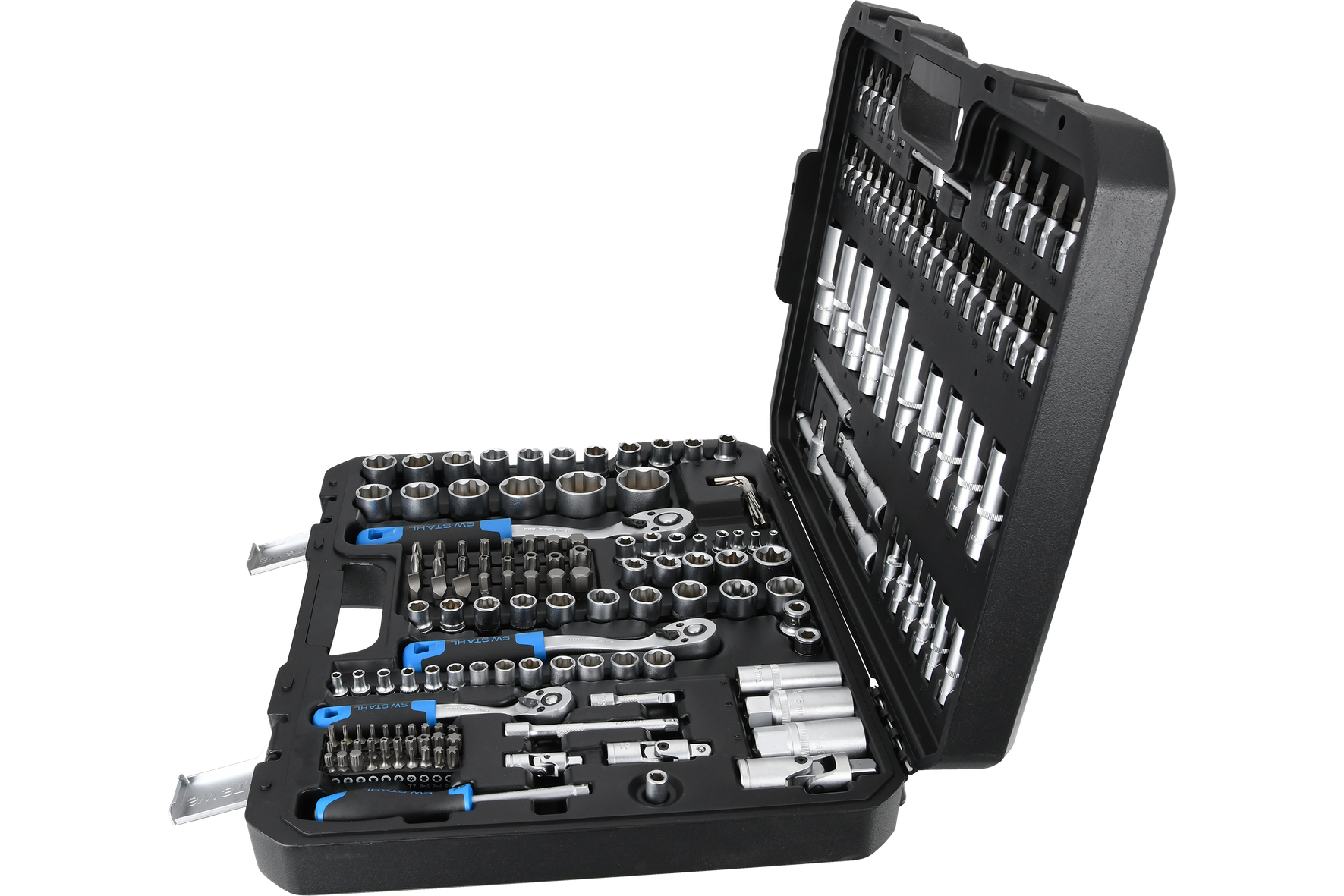

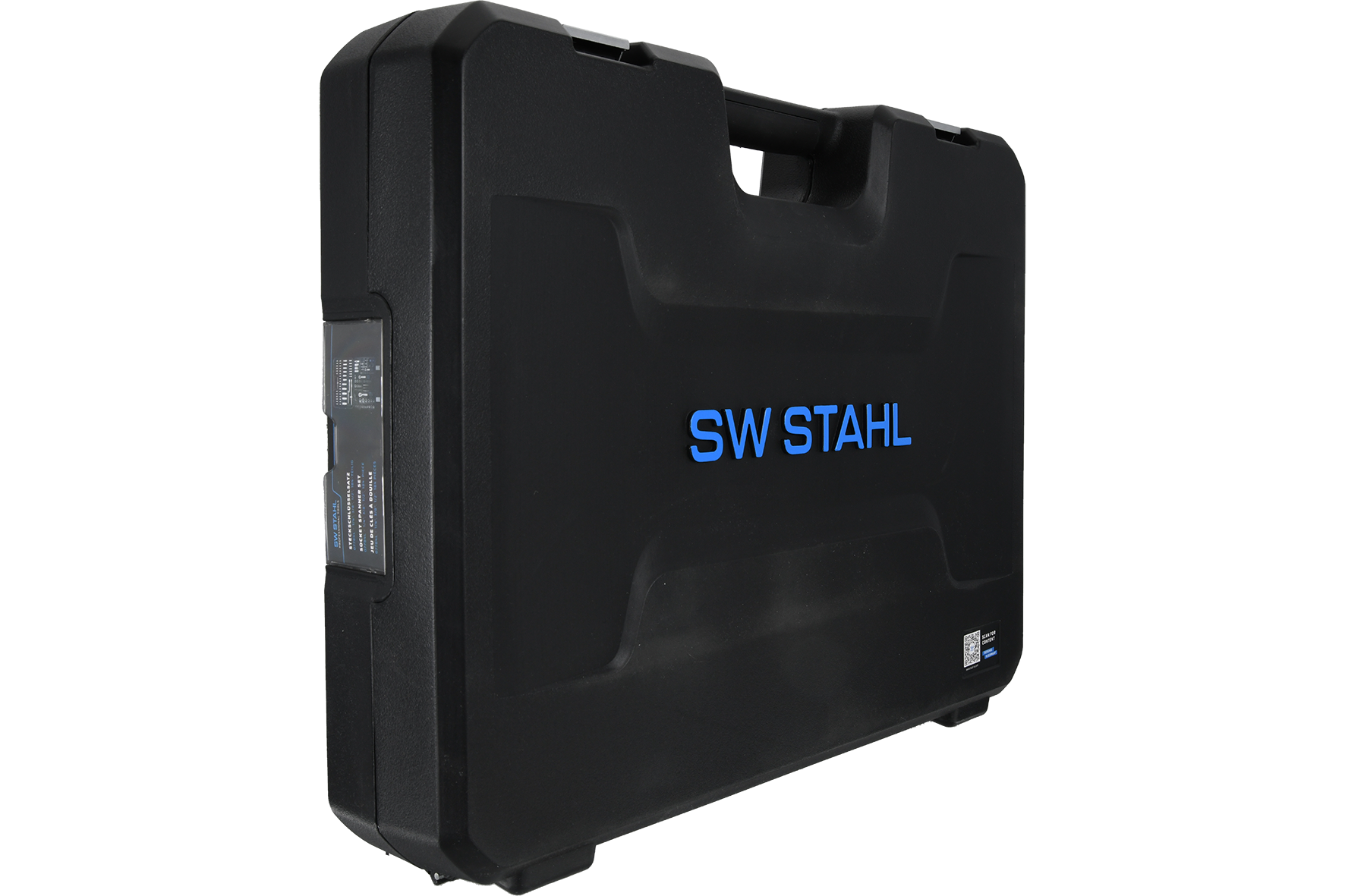

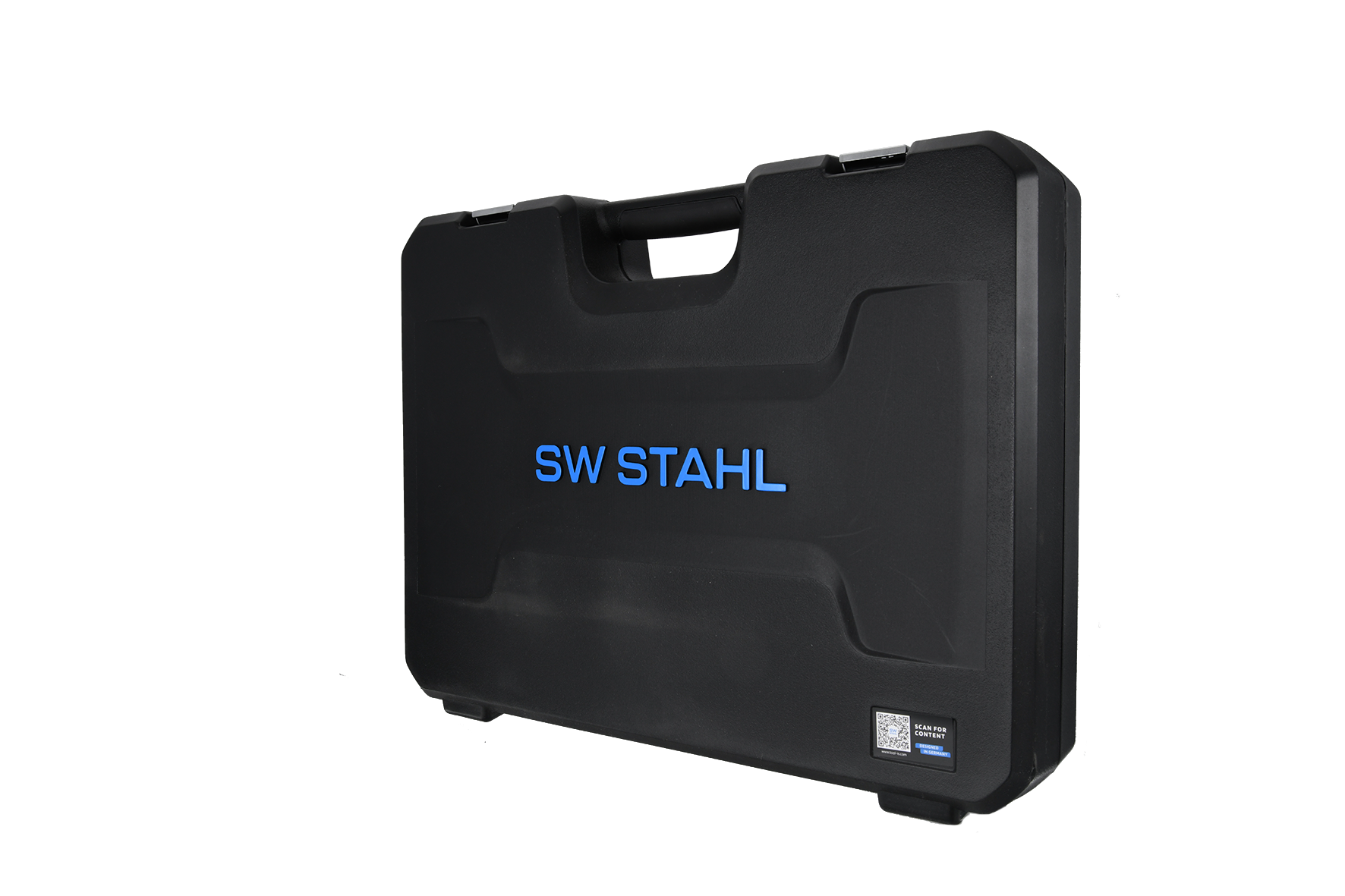

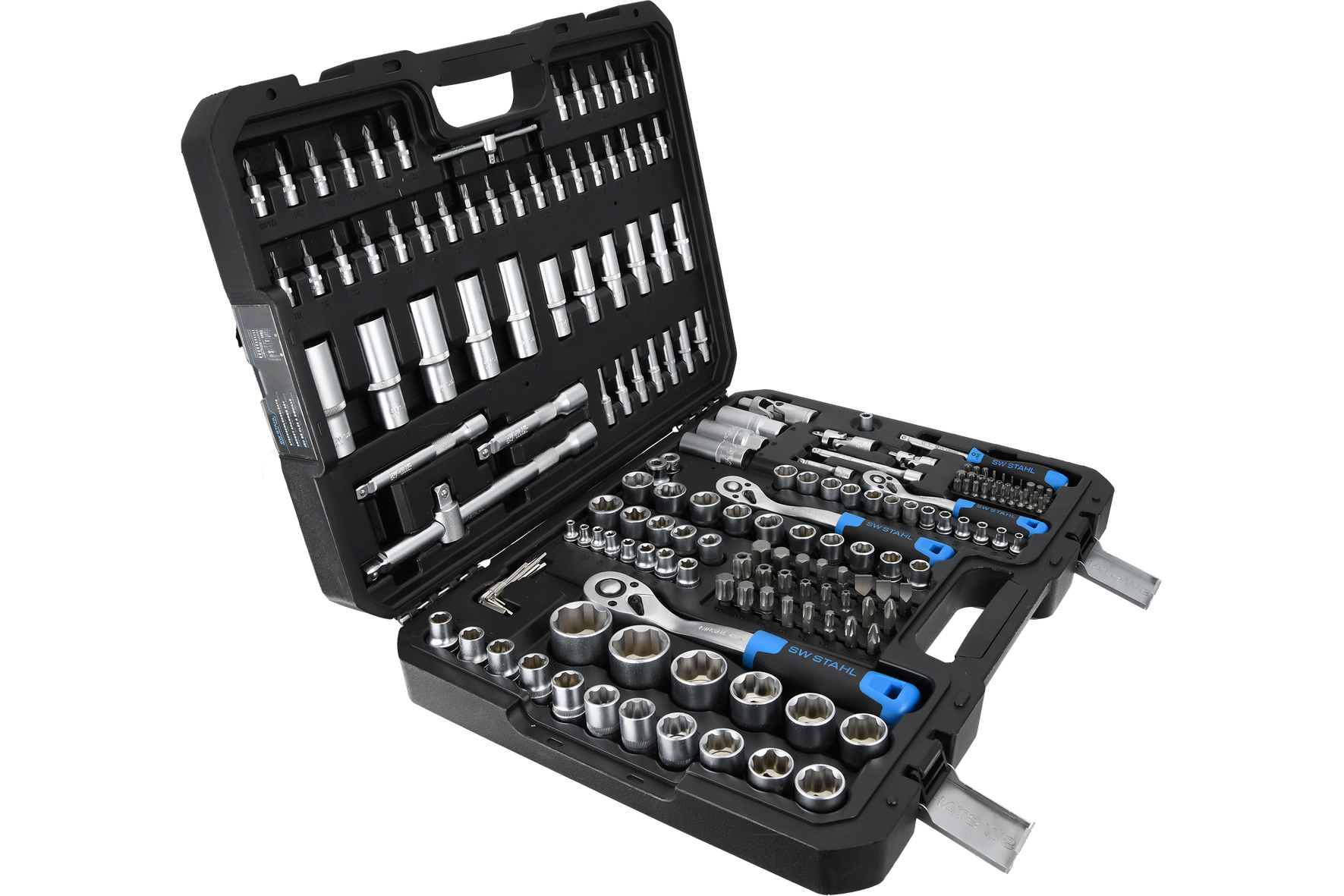

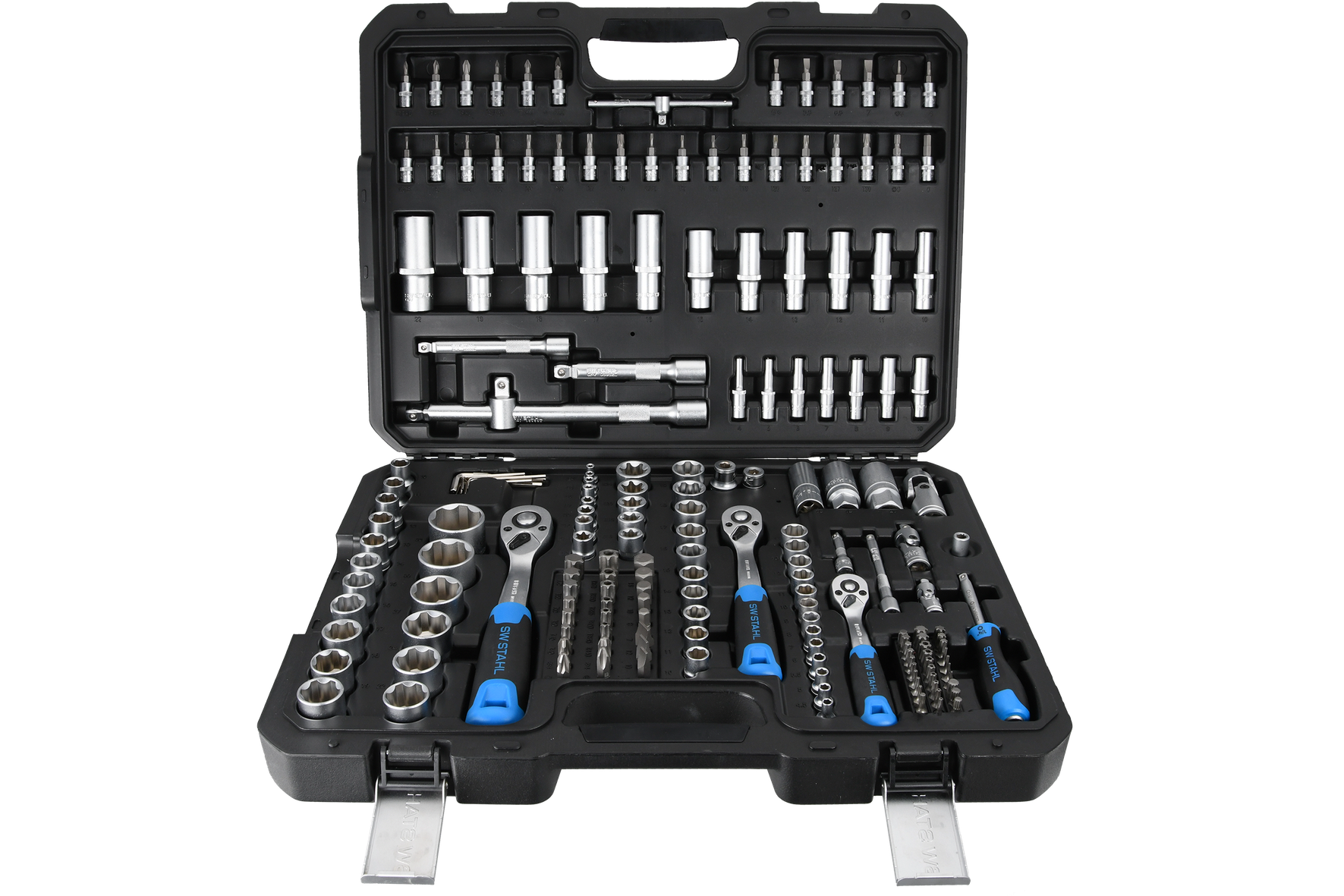

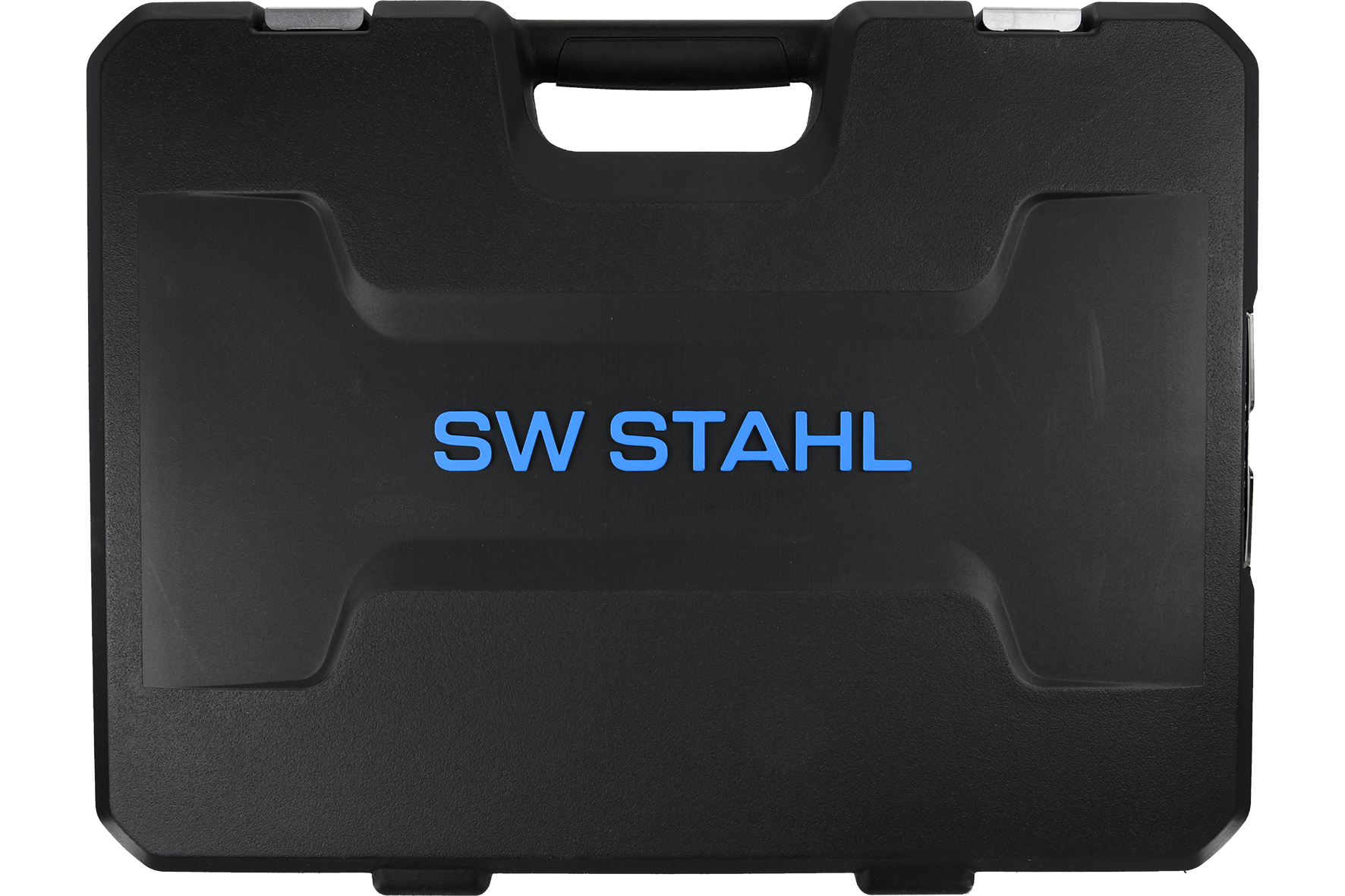

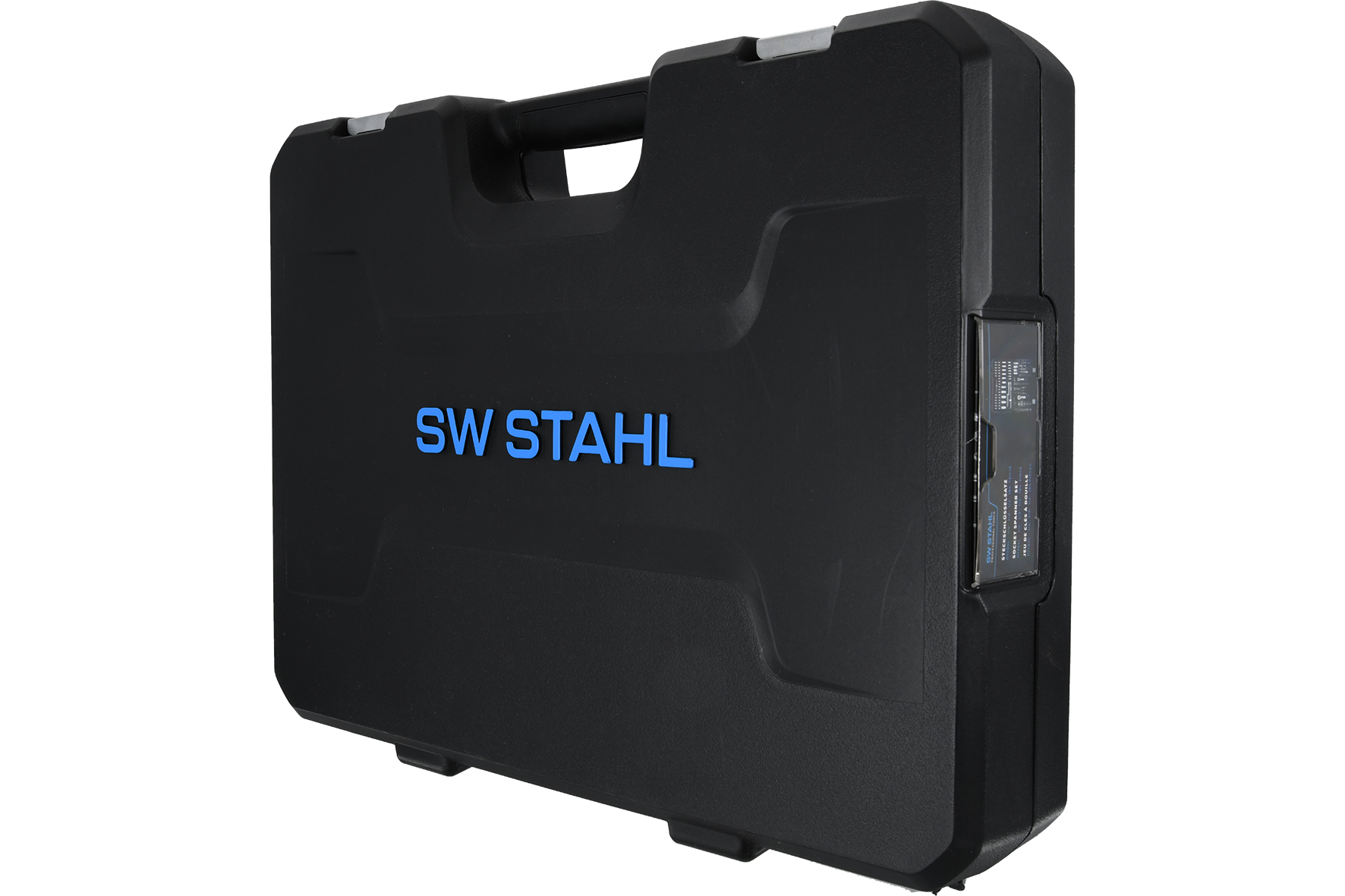

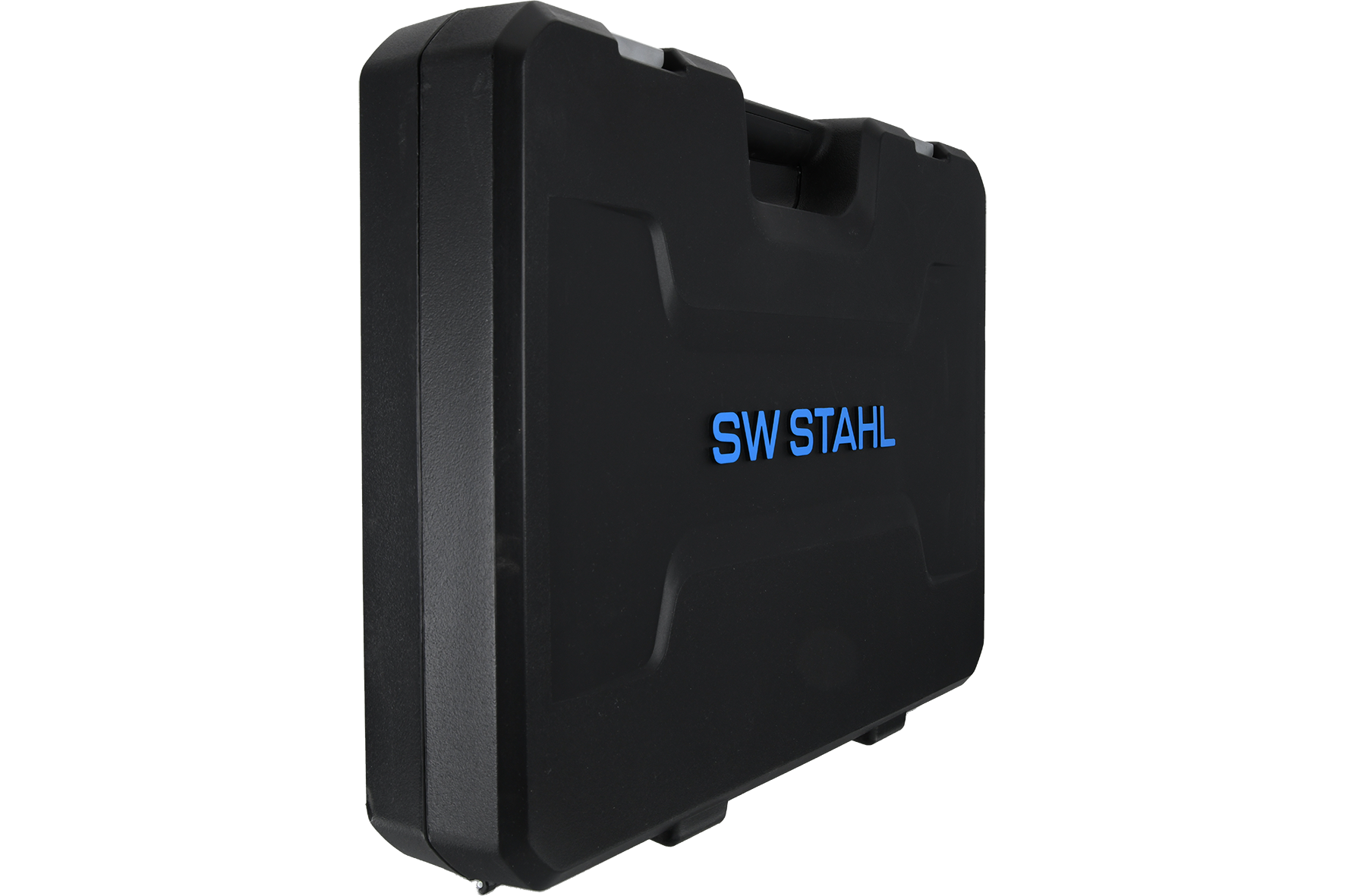

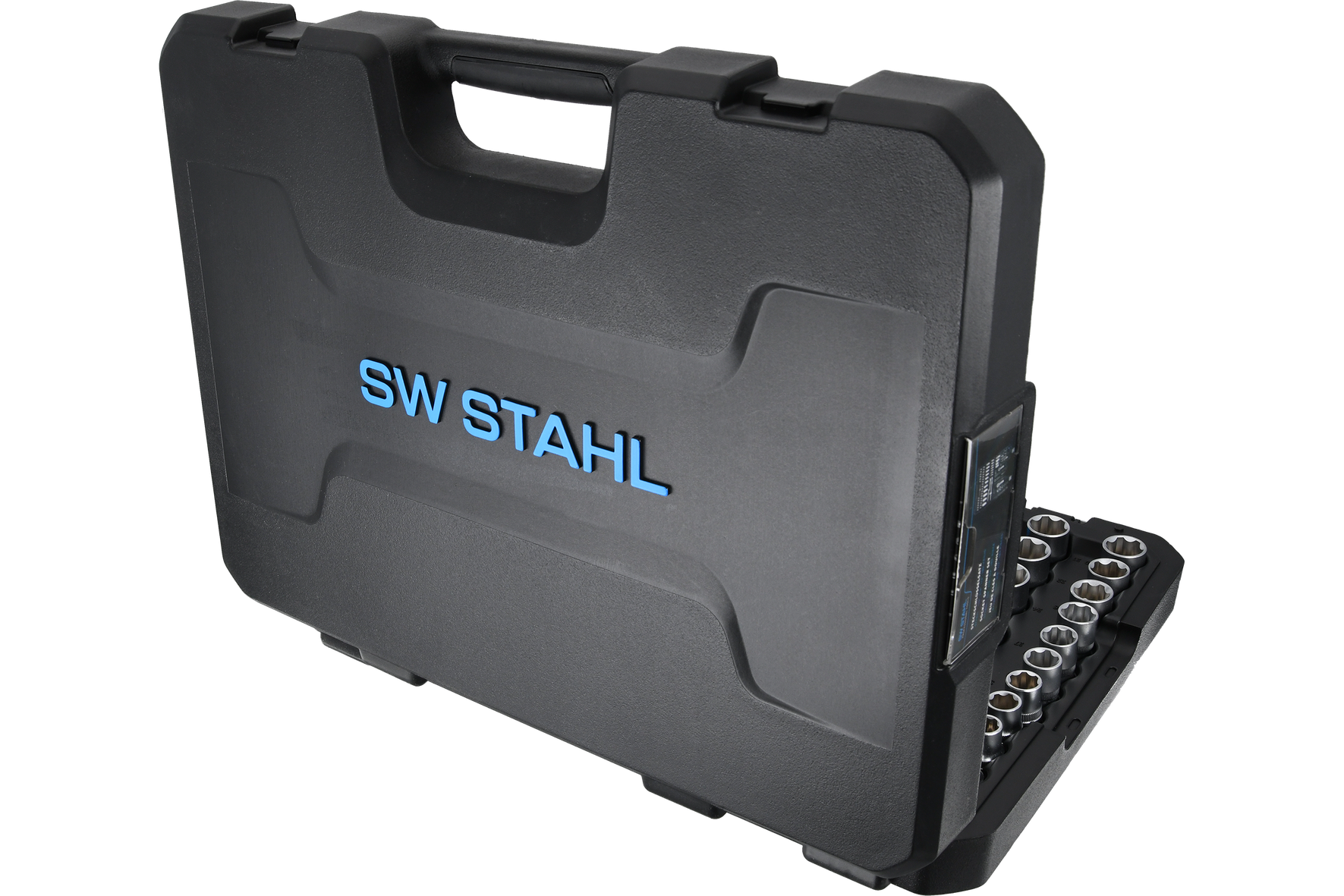

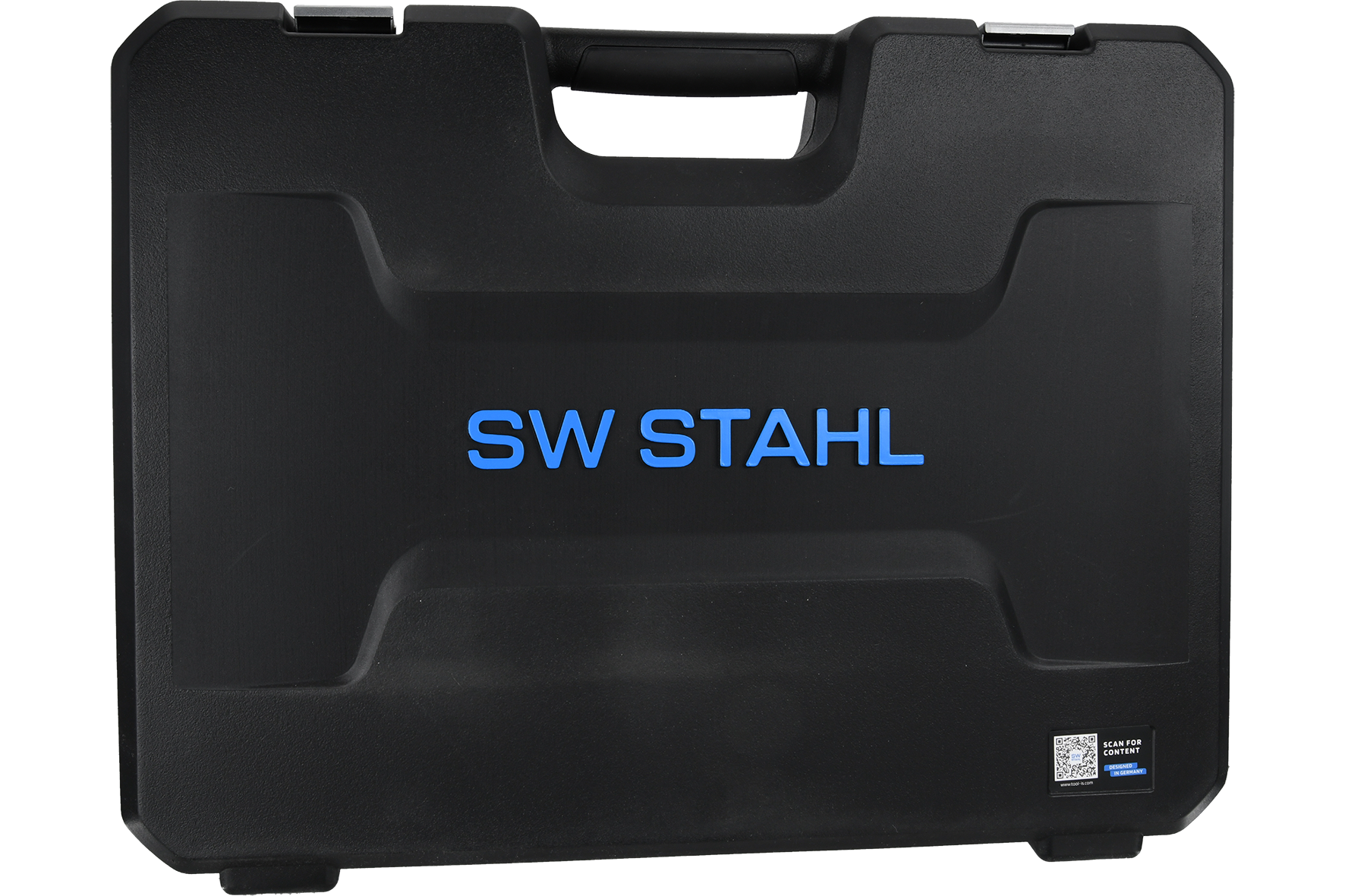

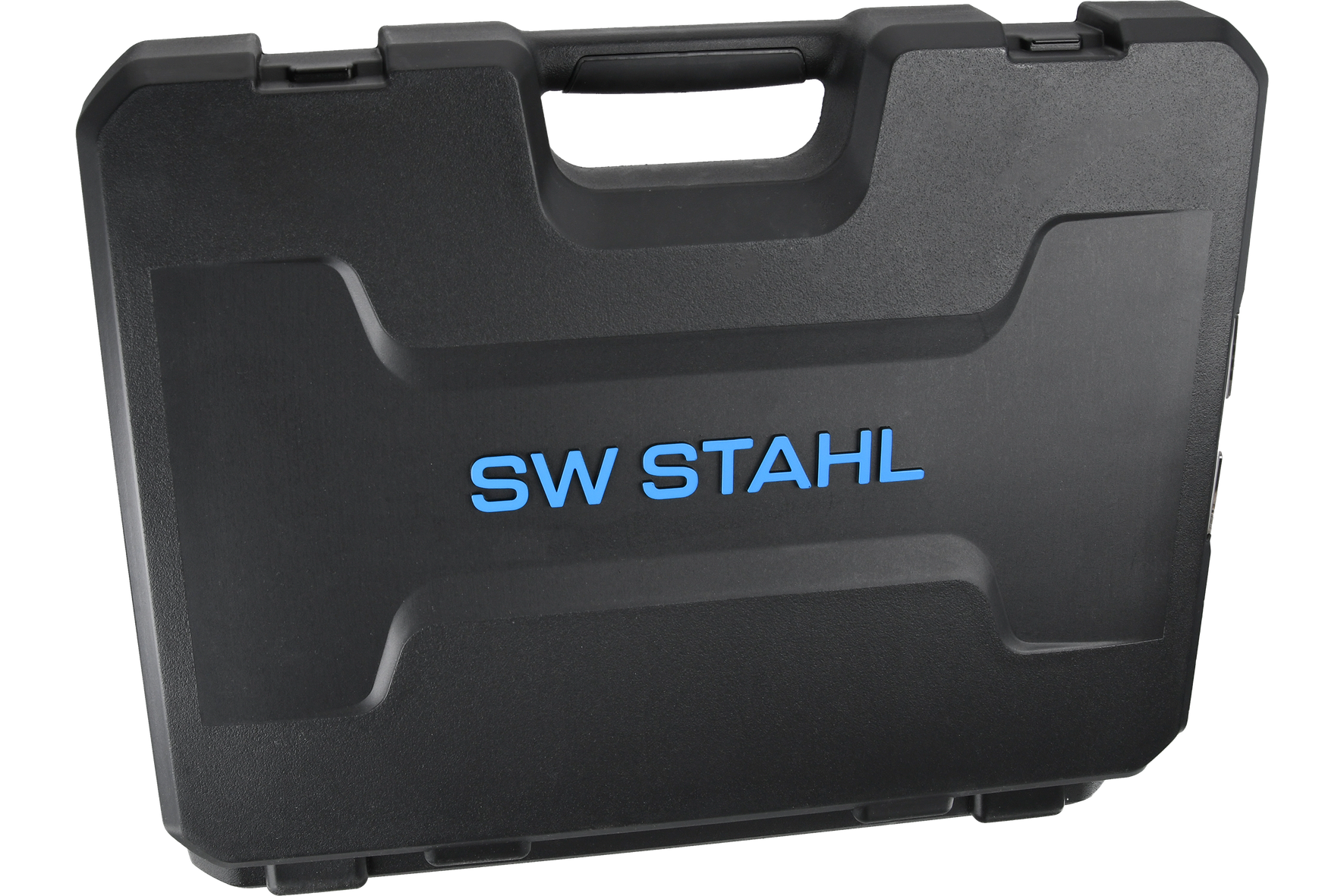

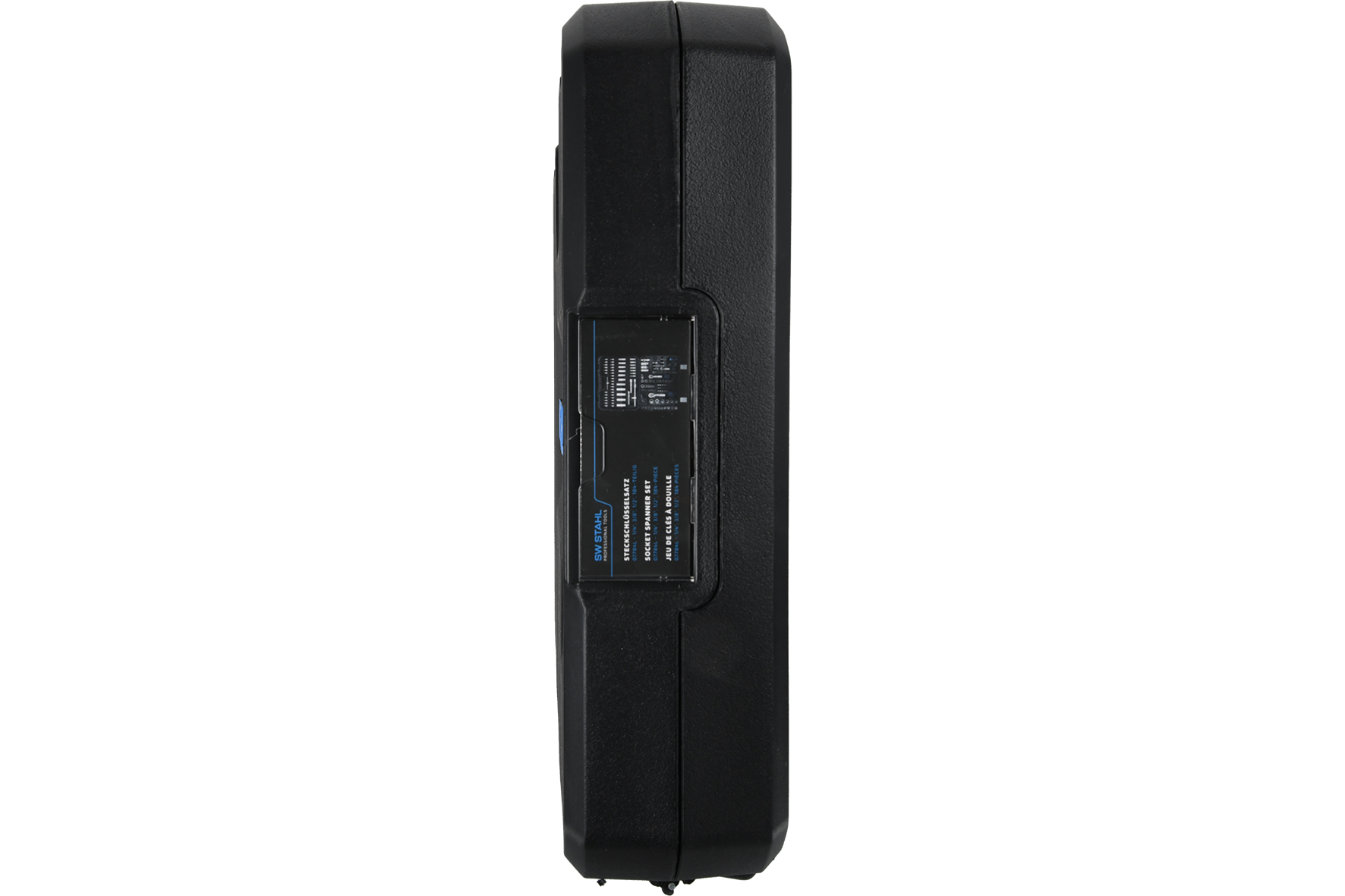

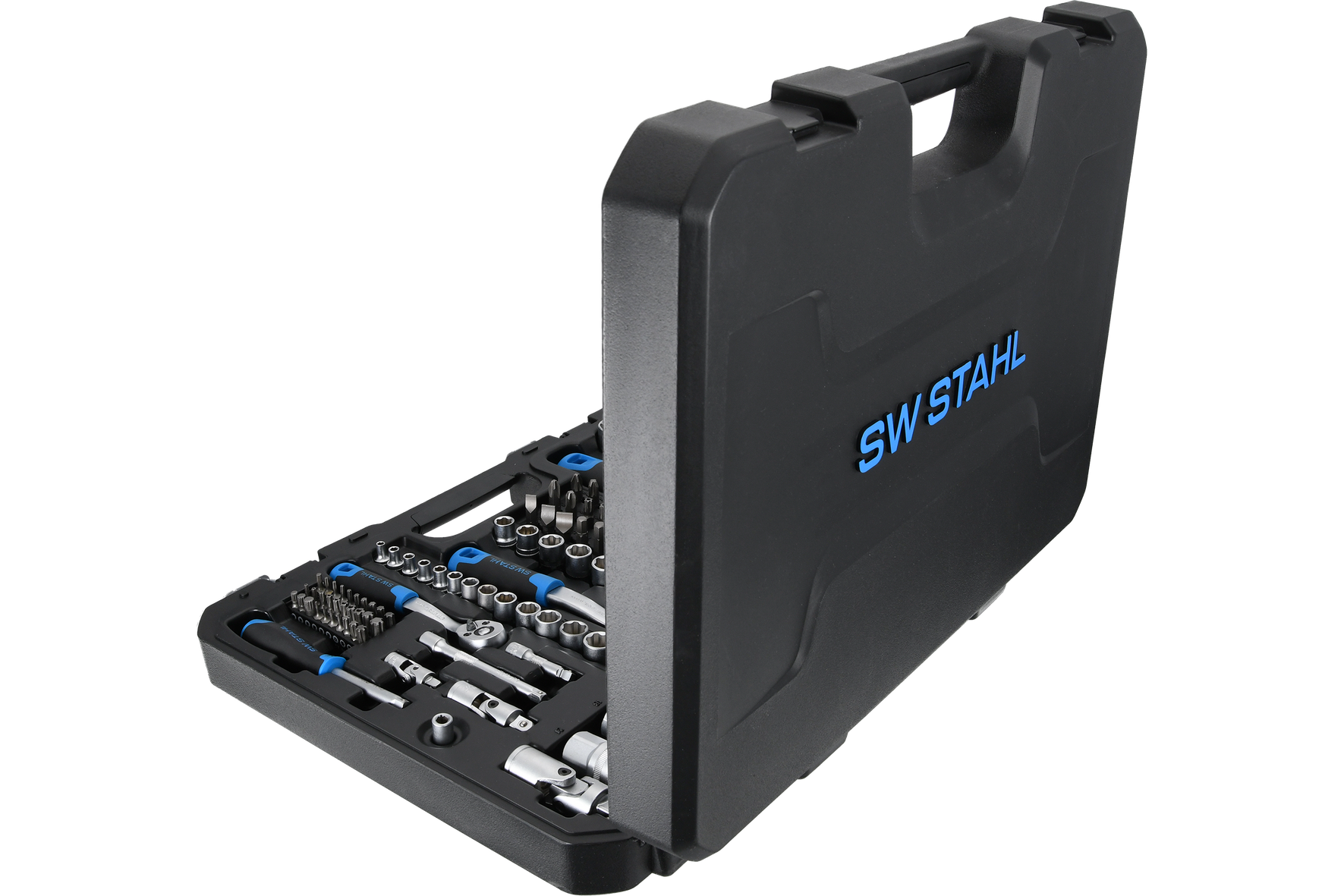

SW STAHL blow mold case "Designed in Germany" - with separable case and inner foam to avoid rust

Reversible ratchet wrenches and 1/4" bit socket driver with non-slip and ergonomic SW STAHL 2-component handle

Hardness and torque according to DIN, tools made of chrome vanadium steel, 1/4" bits and 1/4" screwdriver sockets made of S2 steel with phosphated surface coating for long-lasting corrosion protection, sockets with hexagon wave profile for maximum torque

With 6,3 mm (1/4") drive:

  • 1 each hexagon socket 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
  • 1 each hexagon socket extra long 4, 5, 6, 7, 8, 9, 10 mm
  • 1 each E-profile socket E4, E5, E6, E7, E8
  • 1 each bit socket, T-profile T8, T9, T10, T15, T20, T25, T27, T30
  • 1 each bit socket, T-profile, tamperproof T8, T9, T10, T15, T20, T25, T27, T30
  • 1 each bit socket, inner hexagon 3, 4, 5, 6 mm
  • 1 each bit socket, slot 4, 5.5, 6.5, 7 mm
  • 1 each bit socket, cross slot PH0, PH1, PH2
  • 1 each bit socket, cross slot PZ0, PZ1, PZ2
  • 1 each extension 50, 100 mm
  • Reversible ratchet wrench 145 mm, 72 teeth
  • Bit socket driver 150 mm
  • Sliding handle 110 mm
  • Adaptor for 6.3 mm bits (1/4")
  • Cardan joint

With 10,0 mm (3/8") drive:

  • 1 each hexagon socket 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm
  • 1 each hexagon socket extra long 10, 11, 12, 13, 14, 15 mm
  • 1 each E-profile socket E10, E11, E12, E14, E16, E18
  • Reversible ratchet wrench 205 mm, 72 teeth
  • Extension 125 mm
  • Spark plug socket 18 mm
  • Adaptor for 8 mm bits
  • Cardan joint

With 12,5 mm (1/2") drive:

  • 1 each hexagon socket 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
  • 1 each hexagon socket extra long 16, 17, 18, 19, 22 mm
  • 1 each E-profile socket E20, E24
  • 1 each spark plug socket 16, 21 mm
  • Reversible ratchet wrench 250 mm, 72 teeth
  • Sliding handle 250 mm
  • Extension 125 mm
  • Adaptor for 8 mm bits
  • Cardan joint

Following bits in 8 mm hex drive x 30 mm length:

  • 1 each T-profile bit, tamperproof T40, T45, T50, T55, T60, T70
  • 1 each T-profile bit T40, T45, T50, T55, T60, T70
  • 1 each inner hex bit 7, 8, 10, 12, 14 mm
  • 1 each cross slot bit PH3, PH4
  • 1 each cross slot bit PZ3, PZ4
  • 1 each plain slot bit 8, 10, 12 mm

Following bits in 6,3 mm (1/4") drive x 25 mm length:

  • 1 each XZN tripe square bit M4, M5, M6, M8
  • 1 each T-profile bit T5, T6, T7, T8, T9, T10, T15, T20, T25, T27, T30, T40
  • 1 each wedge groove bit M5, M6, M7, M8, M9
  • 1 each 5-star bit TS10, 15, 20, 25, 27, 30, 40, 45
  • T-profile bit, tamperproof T7

Allen keys:

  • 1 each allen key 1.27, 1.5, 2, 2.5, 3, 4, 5 mm

Technical data

Antriebs-Vierkant [mm] 6,3 (1/4")
Number of tools 184
Antriebs-Vierkant [mm] 10 (3/8")
Antriebs-Vierkant [mm] 12,5 (1/2")
Material Chrome Vanadium Steel
for components see parts list
Quality Premium
Surface Matt, chrom-plated
Length [mm] 480
Width [mm] 370
Height [mm] 90
Weight [kg] 9

More images

Detailed images

Application images

Scope of delivery

Item no. variant Name Quantity
05790L L SB Ratchet wrench, 1/4", ERGO version 1
05890L L SB Ratchet wrench, 3/8", ERGO version 1
05990L L SB Ratchet wrench, 1/2", ERGO version 1
32740L - Bit socket driver, 1/4" 1
05707L L SB Sliding handle, 1/4" 1
05752L L SB Hinged extension 1/4", 50 mm 1
05718L - Extension 100 mm - 1/4" 1
05856L - Hinged extension, 3/8", 125 mm 1
05952L L SB Hinged extension, 1/2", 125 mm 1
05953L L SB Hinged extension, 1/2", 250 mm 1
05907L-1 - Sliding block 1/2" 1
05703L L SB Cardan joint, 1/4" 1
05803L L SB Cardan joint, 3/8" 1
05903L L SB Cardan joint, 1/2" 1
04701L - Allen key, hexagon, 1,5 mm 1
04702L - Allen key, hexagon, 2 mm 1
04703L - Allen key, hexagon, 2,5 mm 1
04704L - Allen key, hexagon, 3 mm 1
04706L - Allen key, hexagon, 4 mm 1
04708L - Allen key, hexagon, 5 mm 1
06455L-E4 - Spanner socket, 1/4", wave profile, 4 mm 1
06455L-E4,5 - Spanner socket, 1/4", wave profile, 4,5 mm 1
06455L-E5 - Spanner socket, 1/4", wave profile, 5 mm 1
06455L-E5,5 - Spanner socket, 1/4", wave profile, 5,5 mm 1
06455L-E6 - Spanner socket, 1/4", wave profile, 6 mm 1
06455L-E7 - Spanner socket, 1/4", wave profile, 7 mm 1
06455L-E8 - Spanner socket, 1/4", wave profile, 8 mm 1
06455L-E9 - Spanner socket, 1/4", wave profile, 9 mm 1
06455L-E10 - Spanner socket, 1/4", wave profile, 10 mm 1
06455L-E11 - Spanner socket, 1/4", wave profile, 11 mm 1
06455L-E12 - Spanner socket, 1/4", wave profile, 12 mm 1
06455L-E13 - Spanner socket, 1/4", wave profile, 13 mm 1
06455L-E14 - Spanner socket, 1/4", wave profile, 14 mm 1
05505L L SB Spanner socket, 3/8", 10 mm 1
05506L L SB Spanner socket, 3/8", 11 mm 1
05507L L SB Spanner socket, 3/8", 12 mm 1
05508L L SB Spanner socket, 3/8", 13 mm 1
05509L L SB Spanner socket, 3/8", 14 mm 1
05510L L SB Spanner socket, 3/8", 15 mm 1
05511L L SB Spanner socket, 3/8", 16 mm 1
05512L L SB Spanner socket, 3/8", 17 mm 1
05516L L SB Spanner socket, 3/8", 18 mm 1
05513L L SB Spanner socket, 3/8", 19 mm 1
07620L-E10 L SB Spanner socket, 1/2", wave profile, 10 mm 1
07620L-E11 L SB Spanner socket, 1/2", wave profile, 11 mm 1
07620L-E12 L SB Spanner socket, 1/2", wave profile, 12 mm 1
07620L-E13 L SB Spanner socket, 1/2", wave profile, 13 mm 1
07620L-E14 L SB Spanner socket, 1/2", wave profile, 14 mm 1
07620L-E15 L SB Spanner socket, 1/2", wave profile, 15 mm 1
07620L-E16 L SB Spanner socket, 1/2", wave profile, 16 mm 1
07620L-E17 L SB Spanner socket, 1/2", wave profile, 17 mm 1
07620L-E18 L SB Spanner socket, 1/2", wave profile, 18 mm 1
07620L-E19 L SB Spanner socket, 1/2", wave profile, 19 mm 1
07620L-E20 L SB Spanner socket, 1/2", wave profile, 20 mm 1
07620L-E21 L SB Spanner socket, 1/2", wave profile, 21 mm 1
07620L-E22 L SB Spanner socket, 1/2", wave profile, 22 mm 1
07620L-E24 L SB Spanner socket, 1/2", wave profile, 24 mm 1
07620L-E27 L SB Spanner socket, 1/2", wave profile, 27 mm 1
07620L-E30 L SB Spanner socket, 1/2", wave profile, 30 mm 1
07620L-E32 L SB Spanner socket, 1/2", wave profile, 32 mm 1
05464L - Spanner socket, 1/4", E-profile, E4 1
05465L L SB Spanner socket, 1/4", E-profile, E5 1
05460L L SB Spanner socket, 1/4", E-profile, E6 1
05461L L SB Spanner socket, 1/4", E-profile, E7 1
05462L L SB Spanner socket, 1/4", E-profile, E8 1
05560L L SB Spanner socket, 3/8", E10 1
05561L L SB Spanner socket, 3/8", E11 1
05562L L SB Spanner socket, 3/8", E12 1
05563L L SB Spanner socket, 3/8", E14 1
05564L L SB Spanner socket, 3/8", E16 1
05565L - Spanner socket, 3/8", E18 1
05666L L SB Spanner socket, 1/2", E-profile, E20 1
05668L L SB Spanner socket, 1/2", E-profile, E24 1
05430-4,0 - Spanner socket, deep, 1/4", 4 mm 1
05430-5,0 - Spanner socket, deep, 1/4", 5 mm 1
05430-6,0 L SB Spanner socket, deep, 1/4", 6 mm 1
05430-7,0 L SB Spanner socket, deep, 1/4", 7 mm 1
05430-8,0 L SB Spanner socket, deep, 1/4", 8 mm 1
05430-9,0 L SB Spanner socket, deep, 1/4", 9 mm 1
05430-10,0 L SB Spanner socket, 1/4", 10 mm, deep 1
05530-10 L SB Spanner socket, deep, 3/8", 10 mm 1
05530-11 L SB Spanner socket, deep, 3/8", 11 mm 1
05530-12 L SB Spanner socket, deep, 3/8", 12 mm 1
05530-13 L SB Spanner socket, deep, 3/8", 13 mm 1
05530-14 L SB Spanner socket, deep, 3/8", 14 mm 1
05530-15 L SB Spanner socket, deep, 3/8", 15 mm 1
05630-16 L SB Spanner socket, deep, 1/2", 16 mm 1
05630-17 L SB Spanner socket, deep, 1/2", 17 mm 1
05630-18 L SB Spanner socket, deep, 1/2", 18 mm 1
05630-19 L SB Spanner socket, deep, 1/2", 19 mm 1
05630-22 L SB Spanner socket, deep, 1/2", 22 mm 1
TEM/4-T8 - Screwdriver bit, 1/4", TR profile, T8 1
TEM/4-T9 - Screwdriver bit, 1/4", TR profile, T9 1
TEM/4-T10 - Screwdriver bit, 1/4", TR profile, T10 1
TEM/4-T15 - Screwdriver bit, 1/4", TR profile, T15 1
TEM/4-T20 - Screwdriver bit, 1/4", TR profile, T20 1
TEM/4-T25 - Screwdriver bit, 1/4", TR profile, T25 1
TEM/4-T27 - Screwdriver bit, 1/4", TR profile, T27 1
TEM/4-T30 - Screwdriver bit, 1/4", TR profile, T30 1
TEO/4-T8 - Screwdriver bit 1/4", T-profile, T8 1
TEO/4-T9 - Screwdriver bit 1/4", T-profile, T9 1
TEO/4-T10 - Screwdriver bit, 1/4", T-profile, T10 1
TEO/4-T15 - Screwdriver bit, 1/4", T-profile, T15 1
TEO/4-T20 - Screwdriver bit, 1/4", T-profile, T20 1
TEO/4-T25 - Screwdriver bit, 1/4", T-profile, T25 1
TEO/4-T27 - Screwdriver bit 1/4", T-profile, T27 1
TEO/4-T30 - Screwdriver bit 1/4", T-profile, T30 1
PE/4-0 - Screwdriver bit, 1/4", PZ0 1
PE/4-1 - Screwdriver bit, 1/4", PZ1 1
PE/4-2 - Screwdriver bit, 1/4", PZ2 1
KE/4-0 - Screwdriver bit, 1/4", cross no. 0 1
KE/4-1 - Screwdriver bit, 1/4", cross 1 1
KE/4-2 - Screwdriver bit, 1/4", cross, PH2 1
IE/4-3 - Screwdriver bit, 1/4", hexagonal, 3 mm 1
IE/4-4 - Screwdriver bit, 1/4", hexagonal, 4 mm 1
IE/4-5 - Screwdriver bit, 1/4", hexagonal, 5 mm 1
IE/4-6 - Screwdriver bit, 1/4", hexagonal, 6 mm 1
SE/4-4 - Screwdriver bit, slot, 1/4", 4 mm 1
SE/4-5 - Screwdriver bit, slot, 1/4", 5,5 mm 1
SE/4-6,5 - Screwdriver bit, slot, 1/4", 6,5 mm 1
SE/4-7 - Screwdriver bit, slot, 1/4", 7 mm 1
05629L L SB Special adapter for 8mm screwdriver bits 1
TBO/8-T40 - Screwdriver bit, 8 mm, T profile, T40 1
TBO/8-T45 - Screwdriver bit, 8 x 30 mm, T45 1
TBO/8-T50 - Screwdriver bit, 8 x 30 mm, T50 1
TBO/8-T55 - Screwdriver bit, 8 x 30 mm, T55 1
TBO/8-T60 - Screwdriver bit, 8 x 30 mm, T60 1
TBO/8-T70 - Screwdriver bit, 8 x 30 mm, T70 1
04186T40 - Screwdriver bit, T40 1
04186T45 - Screwdriver bit, T45 1
04186T50 - Screwdriver bit, T50 1
04186T55 - Screwdriver bit, T55 1
04186T60 - Screwdriver bit, T60 1
04186T70 - Screwdriver bit, T70 1
IBO/8-7 - Screwdriver bit, 8 x 30 mm, hexagon, 7 mm 1
IBO/8-8 - Screwdriver bit, 8 x 30 mm, hexagon, 8 mm 1
IBO/8-10 - Screwdriver bit, 8 x 30 mm, hexagon, 10 mm 1
IBO/8-12 - Screwdriver bit, 8 x 30 mm, hexagon, 12 mm 1
IBO/8-14 - Screwdriver bit, 8 x 30 mm, hexagon, 14 mm 1
KB/8-3 - Screwdriver bit, 8 x 30 mm, PH3 1
KB/8-4 - Screwdriver bit, 8 x 30 mm, PH4 1
SB/8-8 - Screwdriver bit, 8 x 30 mm, slot 8 mm 1
SB/8-10 - Screwdriver bit, 8 x 30 mm, slot 10 mm 1
SB/8-12 - Screwdriver bit, 8 x 30 mm, slot 12 mm 1
PB/8-3 - Screwdriver bit, 8 x 30 mm, PZ3 1
PB/8-4 - Screwdriver bit, 8 x 30 mm, PZ4 1
05400L L SB Bit adapter, 1/4" drive on 1/4" bits 1
04186-ADAPTER - Special adapter for screwdriver bits 1
XBO/4-4 - Screwdriver bit, spline, M4, short 1
XBO/4-5 - Screwdriver bit, spline, M5, short 1
XBO/4-6 - Screwdriver bit, spline, M6, short 1
XBO/4-8 - Screwdriver bit, spline, M8, short 1
TBO/4-T7 - Screwdriver bit, 1/4", T7 1
TBO/4-T8 - Screwdriver bit, 1/4", T8 1
TBO/4-T9 - Screwdriver bit, 1/4", T9 1
TBO/4-T10 - Screwdriver bit, 1/4", T10 1
TBO/4-T15 - Screwdriver bit, 1/4", T profile, T15 1
TBO/4-T20 - Screwdriver bit, 1/4", T profile, T20 1
TBO/4-T25 - Screwdriver bit, 1/4", T profile, T25 1
TBO/4-T27 - Screwdriver bit, 1/4", T27 1
TBO/4-T30 - Screwdriver bit, 1/4", T profile, T30 1
TBO/4-T40 - Screwdriver bit, 1/4", T40 1
TBM/4-T7 - Screwdriver bit, 1/4", T7 with hole 1
07620L-ZK16 - Spark plug socket, 1/2", 16 mm 1
07620L-ZK21 - Spark plug socket, 1/2", 21 mm 1
03105L L SB Spark plug socket, 3/8" 18 mm 1
